Wireless Bodypack Transmitter (Band A: 530.025 - 559.00 Mhz)

Short description

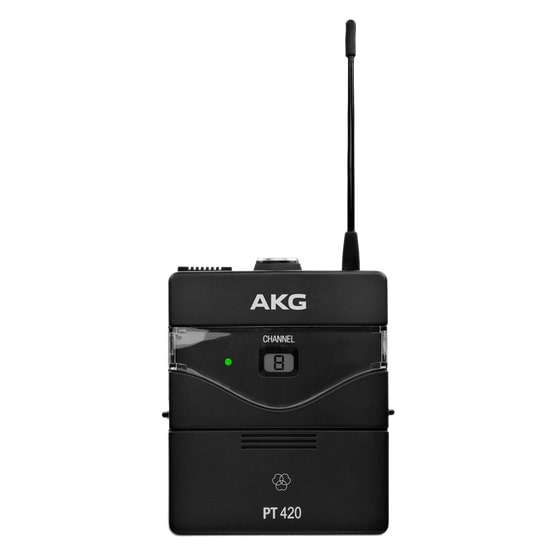

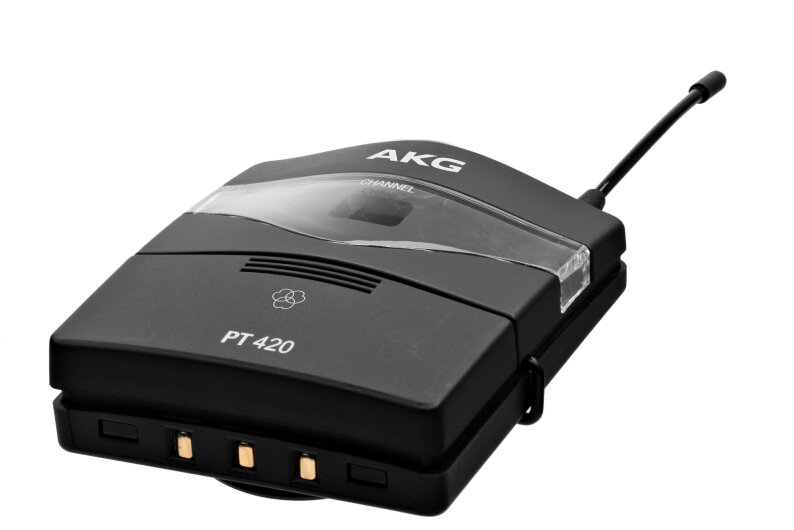

The PT420 from AKG is a wireless bodypack transmitter used with the SR420 wireless receiver (sold separately) and has a frequency band of 530.025 - 559.00 MHz.

Wireless Bodypack Transmitter (Band A: 530.025 - 559.00 Mhz)

Name: Wireless Bodypack Transmitter (Band A: 530.025 - 559.00 Mhz)
SKU: PT420-BAND-A

Brand: AKG

Model: PT420-BAND-A

UPC: 885038036258

Please log in to see your price

About This Product

Description:

The PT420 from AKG is a wireless bodypack transmitter used with the SR420 wireless receiver (sold separately) and has a frequency band of 530.025 - 559.00 MHz. The PT420 features a noiseless on/off/mute switch and a gain control for immediate volume adjustment. It comes with a AA size battery which lasts up to eight hours and has a low battery indicator to guarantee secure operation. This transmitter features a 3-pin mini XLR microphone connector and is compatible with all AKG MicroMics.

Compatibility AKG MicroMics

Frequency Band Band A: 530.025 - 559.00 MHz

Connector 3-pin mini XLR female, input

Maximum Audio Level 12 dB

Rated Impedance 1 Ohm

Audio Bandwidth 40 Hz to 20 kHz (±3 dB)

Signal to Noise Ratio 105 dB-A

THD 0.8% @ at 1 kHz

Transmitter Synchronization Manual

Control 3-position switch, On / Off / Mute

Gain control

Battery Type AA battery (LR 6 AA alkaline battery or HR 6 AA (NiHM) rechargeable battery)

Operating Time Up to 8 hours with one AA battery

Dimensions 2.4 x 3.0 x 1.2" (6.0 x 7.6 x 3.0 cm)

Weight 8 oz (214 g)

Specifications
