Short description
A medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap low frequency driver and high frequency exit, voice-coil compression driver.
JBL

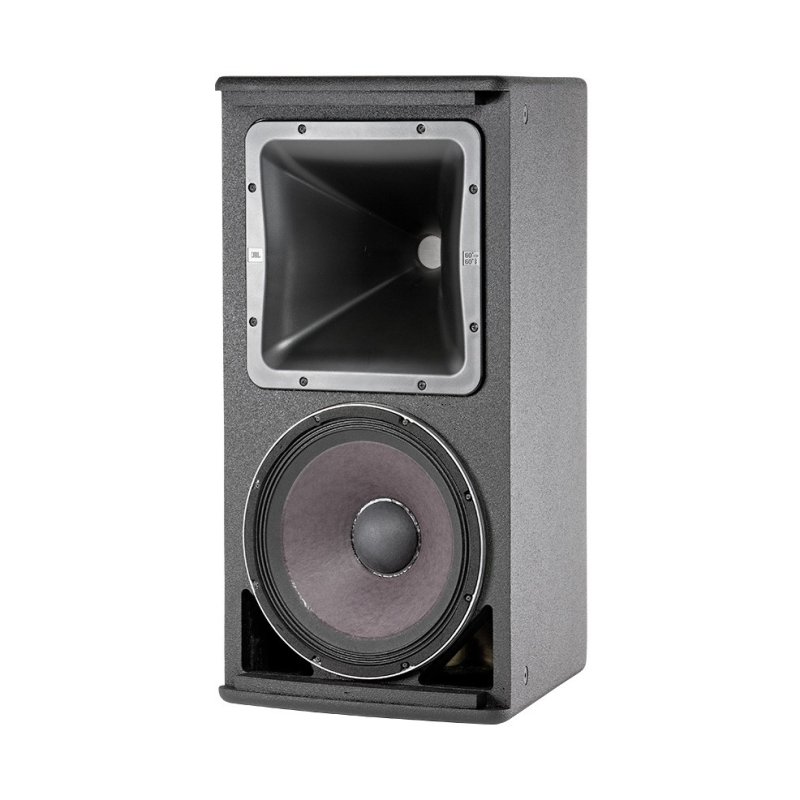

Weather-Resistant 2-Way Loudspeaker System with 1 x 12" LF, Black

Brand: JBL
Model: AM5212/00-WRC
UPC: 691991029264
Please log in to see your price
About This Product

Description:

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

100° x 100° Coverage

262H-1 Differential Drive® Low-Frequency Driver

2408H-1 High-Frequency Compression Driver

Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion

Rotatable waveguide for vertical or horizontal orientation

Bi-Amp/Passive Switchable

Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality

Available in Black, White and WRC/WRX weather resistant finishes

Applications: performing arts facilities, theatrical sound design, auditoriums, worship facilities, live clubs, dance clubs, sports facilities, themed entertainment venues.
