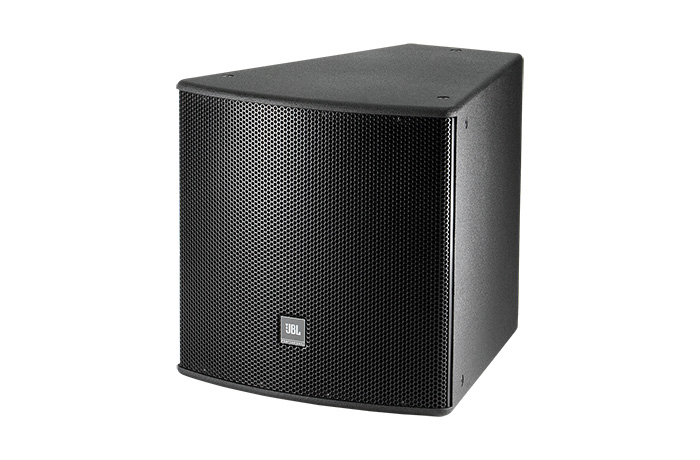

Weather Protection High Power Mid-High Frequency Loudspeaker With Rotatable Horn, Black

Short description

Weather Protection High Power Mid-High Frequency Loudspeaker With Rotatable Horn, Black

Name: Weather Protection High Power Mid-High Frequency Loudspeaker With Rotatable Horn, Black
SKU: AM7200/64-WRX

Brand: JBL

Model: AM7200/64-WRX

UPC: 691991010941

Please log in to see your price

About This Product

Description:

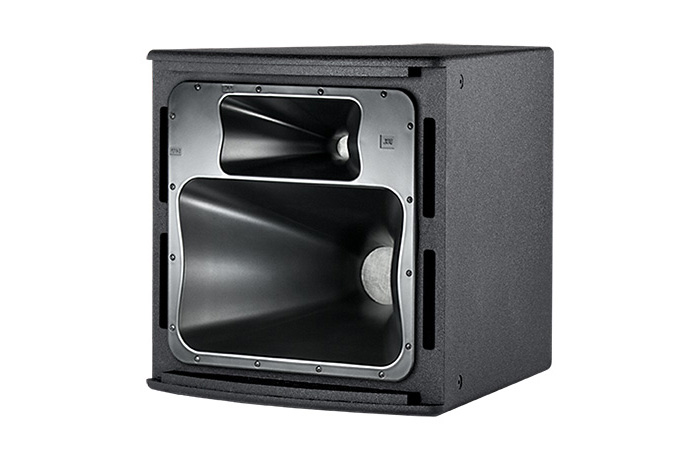

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Frequency Range (-10 dB) 260 Hz – 20 kHz

Frequency Response (±3 dB) 330 Hz – 18 kHz

Coverage Pattern 60° x 40°

Crossover Modes Bi-amp/Passive switchable

Crossover Frequency 2.3 kHz

Transducer Power Rating (AES) MF: 350 W (1400 W peak), 2 hrs HF: 100 W (400 W peak), 2 hrs

Long-Term System Power Rating (IEC) MF/HF: 200 W (800 W peak), 100 hrs

Maximum SPL Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)

System Sensitivity (1W @ 1m): Passive mode: 108 dB SPL

Nominal Impedance 8 ohms

Midrange Driver JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice-coil internal driver

Sensitivity (1W @ 1m) (Midrange) 108 dB SPL

High Frequency Driver JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity (1W @ 1m) (High Frequency) 115 dB SPL

Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood

Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish Black DuraFlex™ finish.

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.

Environmental Specifications Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical cabinet orientation) 548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)

Net Weight 27.2 kg (60 lb)
