Short description

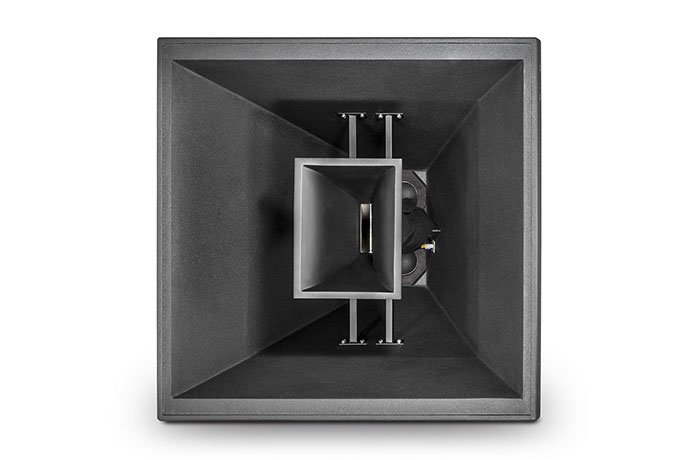

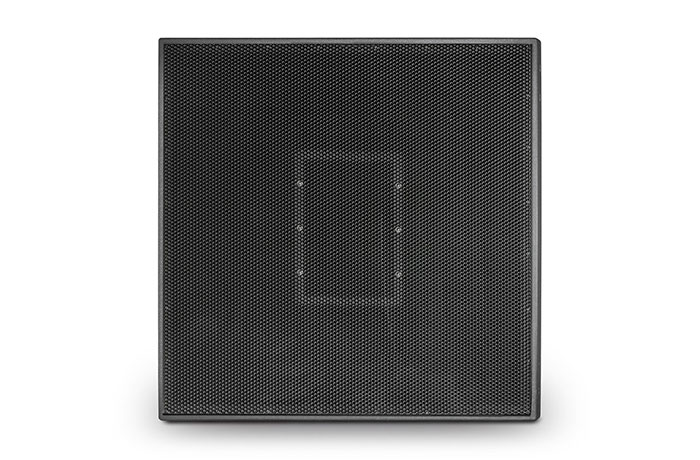

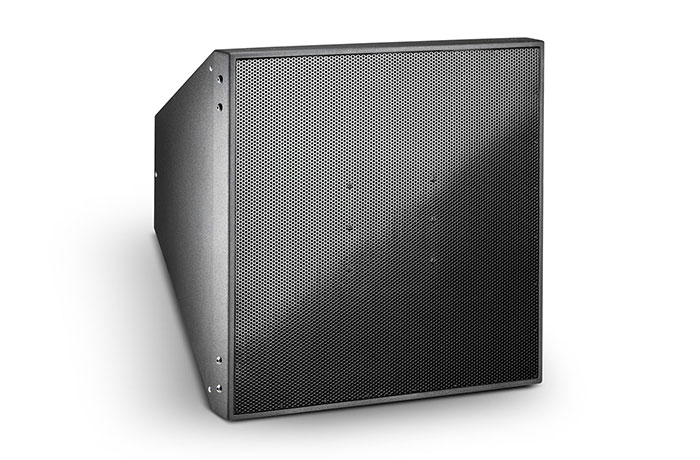

The PD743i Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs.
JBL

Weather Protection 8" 2-Way 40x30° Mid / High Passive Speaker, Black

Brand: JBL
Model: PD743-WRC
UPC: 691991014918
Please log in to see your price
About This Product

Description:

The PD743i Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i-215 may be used in clusters with other PD family modules or singly as part of a distributed system.

40° by 30° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.

IFS™ Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.

Dual 2432H compression drivers with 3” diaphragms

Dual CMCD-82H 8” horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs.

Pattern control maintained to below 400 Hz.

Co-axial mid/high-frequency module layout improves mid frequency arrayability and minimizes size.

Integrated rigging system simplifies array design and construction.

Specifications
