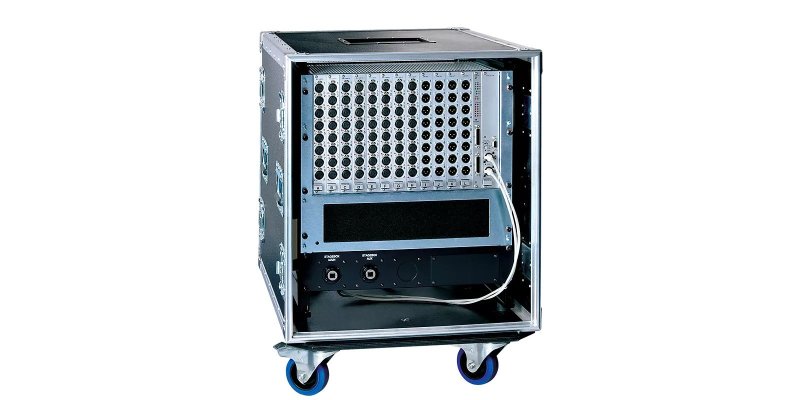

The 9U Vi Stagebox houses up to 64 mic/line inputs and 32 analogue line outputs and can be reconfigured as part-fitted or with alternative cards as required. In this configuration, there are 48 Mic/line inputs, 16 analogue line outputs, 4 blanks, and CAT5 connection to the desk.
Mic/line amp gain, 48 V phantom power and 100 Hz lo-cut filter before the A-D converters can all be controlled remotely from the desk.
Optional AES/EBU, CobraNet®, Ethersound®, Aviom A-Net® 16, Blu Link or Dante cards are available, as well as transformer balanced options for the mic input cards. |
