Short description

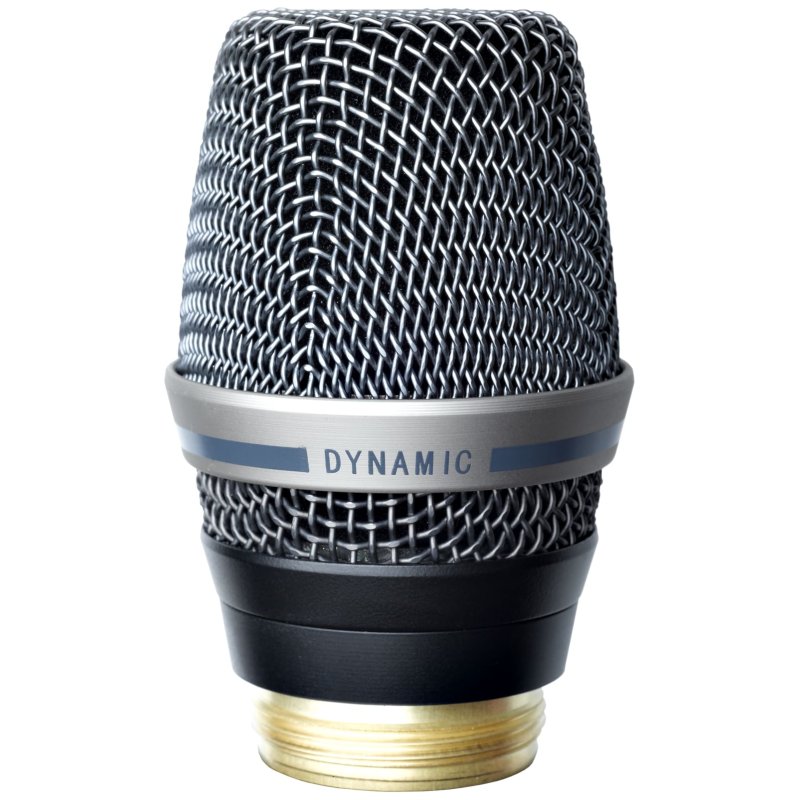

The D7 WL1 reference dynamic vocal microphone head creates the subtle and opened sound of a condenser capsule with the powerful resonance of a dynamic microphone.
AKG

Supercardioid Reference Dynamic Microphone Capsule With D7 Acoustic

Brand: AKG
Model: D7-WL1
UPC: 885038024477
Please log in to see your price
About This Product

Description:

The D7 WL1 reference dynamic vocal microphone head creates the subtle and opened sound of a condenser capsule with the powerful resonance of a dynamic microphone. The patented dual layer Varimotion diaphragms can vibrate unhindered which results in an extraordinary crisp and clean sound. The unique laminated material damps high resonance peaks in the frequency response. In combination with the tight, supercardioid polar pattern enables the D7´s outstanding high gain before feedback. The D7 WL1 features a precision metal dust filter that provides a consistent protection for the diaphragm, ensuring an extra long life. It is designed to fit the HT4500 and DHT800 handheld transmitters.

AKG Wireless System Compatibility DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)

Type Dynamic

Polar Pattern Supercardioid

Capsule Patented dual-layer Varimotion diaphragm

Isolation Dual shock mount capsule and integrated humbucking coil

Grille Spring-steel wire-mesh

Frequency response 70 - 20000 Hz w/ internal 80Hz high pass filter

Sensitivity 2.6 mV/Pa

Maximum SPL 147dB @ 1% / 156dB @ 3%

Equivalent Noise Level 18dB(A) to IEC 60268-4

Specifications
