Short description
The secret to making speakers sound great lies with the crossover you use. With the dbx® 234xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest proce
DBX

Stereo 2/3 Way, Mono 4-Way Crossover With Xlr Connectors

Brand: DBX
Model: DBX234XSV
UPC: 691991401299
Please log in to see your price
About This Product

Description:

The 234xs from dbx is a dual channel, stereo 2/3-way or mono 4-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound. The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid "click" controls to the high quality XLR inputs and outputs.

Stereo 2/3-way, mono 4-way crossover

Mode switch for stereo 2/3-way or mono 4-way operation

24dB per octave Linkwitz-Riley filters

Low frequency summed (subwoofer) output

Range switch on both channels (x10)

40Hz high-pass (low-cut) filter on both channels

Phase reverse switch on all outputs

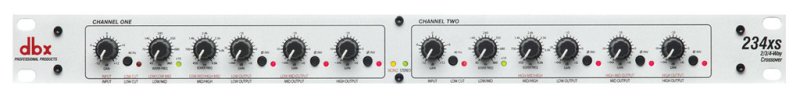

Individual level controls on all outputs

Stereo/Mono status LEDs indicate the selected mode

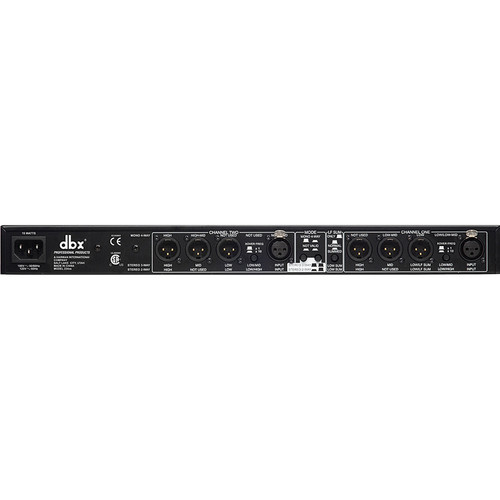

XLR balanced ins and outs

CSA NRTL/C approved and CE compliant

Specifications
