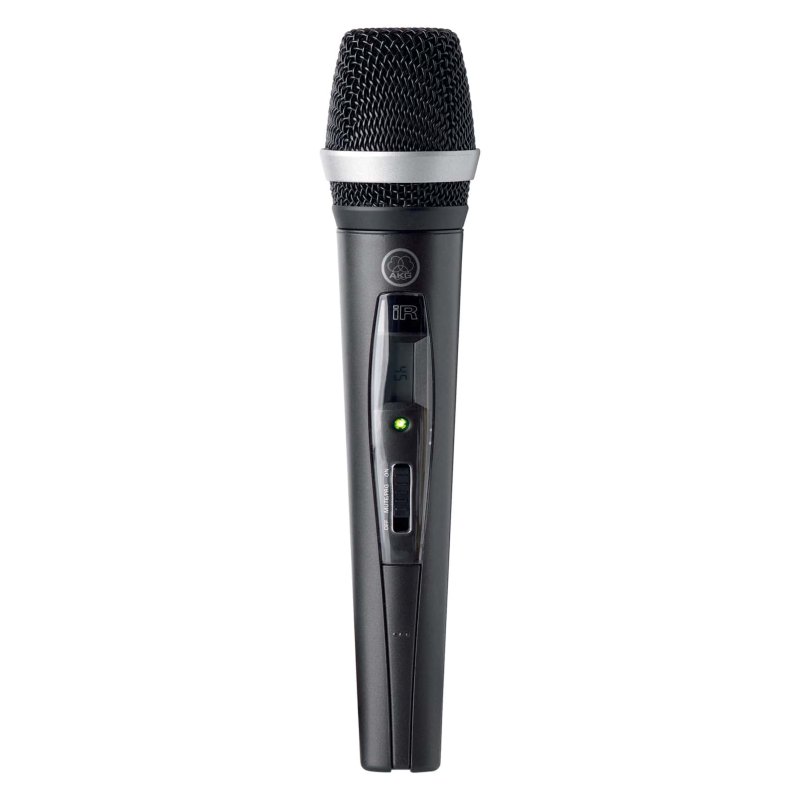

Professional Wireless Handheld Transmitter (Band 8)

Short description

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise.

Professional Wireless Handheld Transmitter (Band 8)

Name: Professional Wireless Handheld Transmitter (Band 8)
SKU: HT470-D5-BD8

Brand: AKG

Model: HT470-D5-BD8

UPC: 885038029533

Please log in to see your price

About This Product

Description:

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours.

Signal to Noise120 dB-A

THD at 1 kHz0.7 Prozent

Operating temperature range-10 to 55 Celsius

Peak deviation 48 kHz

Nominal deviation 20 kHz

Radio Output Power (min/max)10 to 50 mW

Microphone head versionsD5; C5

Switching bandwidth 30 MHz

Recommended simultaneous channels24

Number of selectable frequencies1220 (selectable in 25kHz steps)

Frequency Selections electable frequency in 25kHz steps

Radio range (Line of sight)100m (depending on antenna system)

Modulation FM (Frequency Modulation)

Switchable RF power no

Pilot Tone yes

Height 237 mm

Width 51 mm

Net Weight 240 g

Battery type FR 6 AA lithium

Number of batteries 1

Operating time 14 h

Battery 2 Battery type HR 6 AA (NiHM) rechargeable

Number of batteries 1

Operating time 8 h

Battery 1 Battery type LR6 AA alkaline

Number of batteries 1

Operating time 7 h
