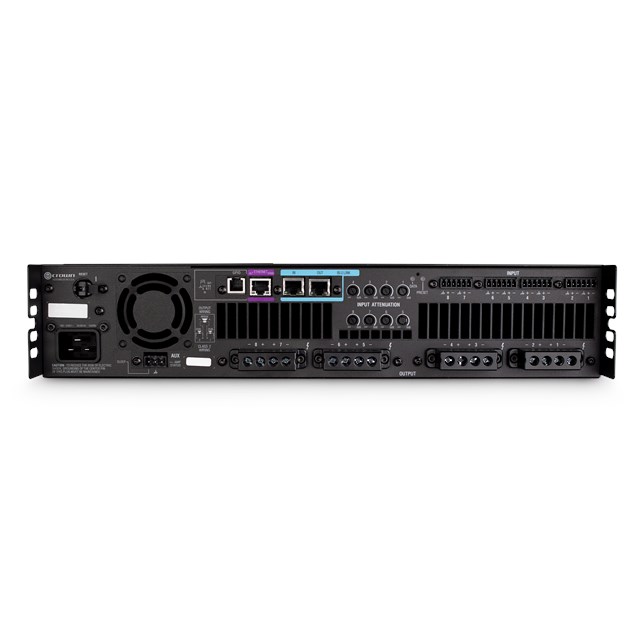

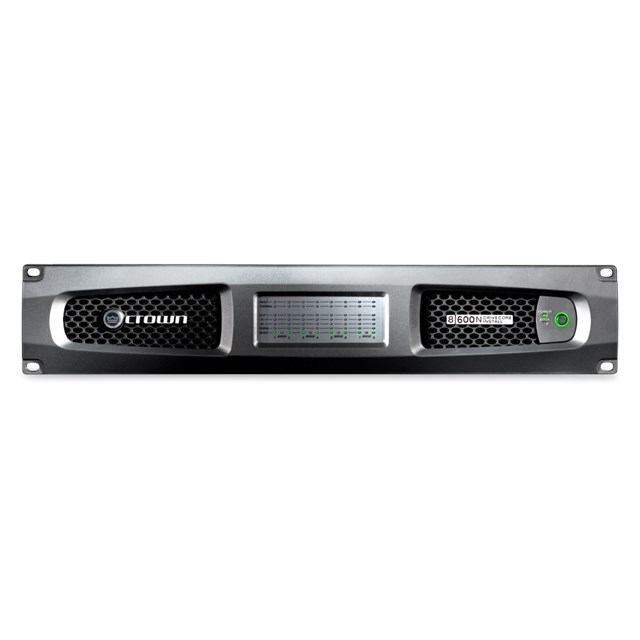

Power Amp 8X600W

Name: Power Amp 8X600W
SKU: DCI8X600N

Brand: Crown

Model: DCI8X600N

UPC: 691991009099

Please log in to see your price

About This Product

Description:

The new DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industry’s highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Frequency Response ( 8 Ohms, 20 Hz - 20 kHz): +/- 0.25 dB

BLU Link Input Signal to Noise Ratio (A-Weighted): > 104dB Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz): 0.35%

Voltage Gain: 34 dB

Damping Factor (20 Hz to 100 Hz): >1000

Input Impedance (nominal balanced, unbalanced): 10 kOhms, 5 kOhms

Maximum Input Level before Compression: +20 dBu

Load Impedance (Stereo/Dual Mode): 2 - 16 Ohms; 70Vrms and 100Vrms

Load Impedance Bridge Mono: 4 - 16 Ohms; 140Vrms and 200Vrms

Cooling: Continuously variable speed forced air, front to back airflow

Maximum Fan Noise (re dBA SPL @ 1M): 47

Required AC Mains (+/- 10%): 100V-240V ~ 50/60 Hz

Dimensions: 19" x 3.5" x 17" (48.3cm x 8.9cm x 42.5cm) Weight: 30lbs (13.60kg)

IEC Power Connector: 20A

Specifications
