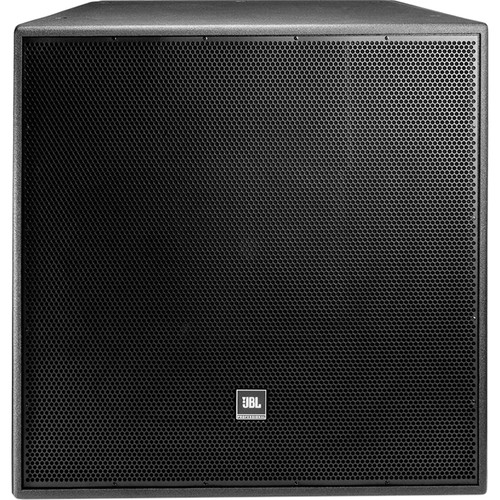

Extreme Weather Protection 15" Horn-Loaded Full-Range Loudspeaker System, Black

Short description

PD564 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control.

Extreme Weather Protection 15" Horn-Loaded Full-Range Loudspeaker System, Black

Name: Extreme Weather Protection 15" Horn-Loaded Full-Range Loudspeaker System, Black
SKU: PD564-WRX

Brand: JBL

Model: PD564-WRX

Please log in to see your price

About This Product

Description:

PD564 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD564 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.

Coverage Pattern 60° x 40°

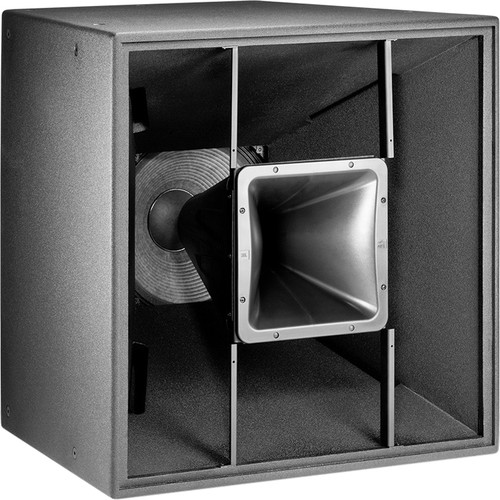

380 mm (15”) horn-loaded low-frequency driver

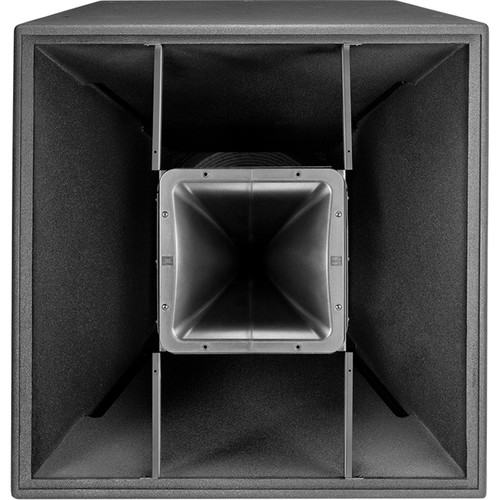

Large PT™ Progressive Transition™ waveguides provide broad band 60° x 40° pattern control, low distortion at high SPL levels and smooth frequency response

Rotatable waveguide allows for either horizontal or vertical cabinet orientation

Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes

Specifications
