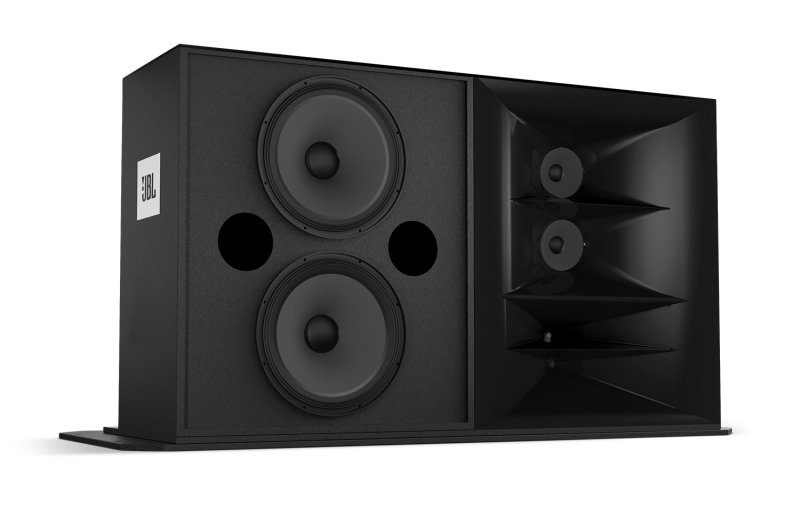

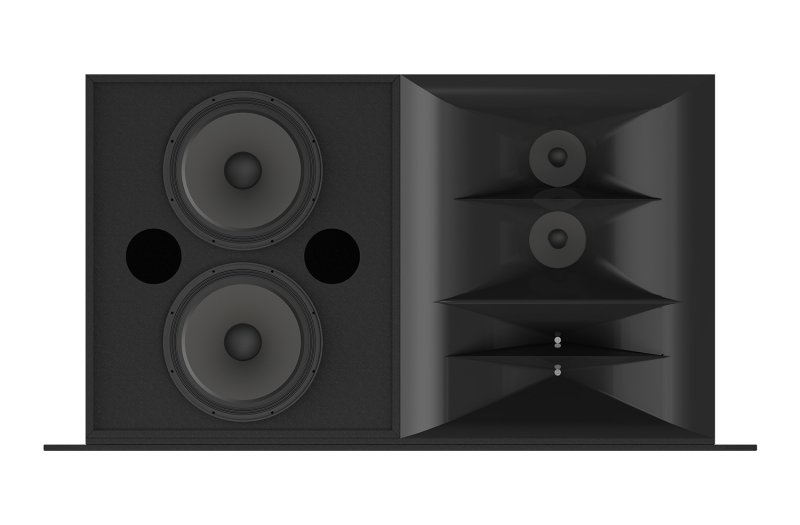

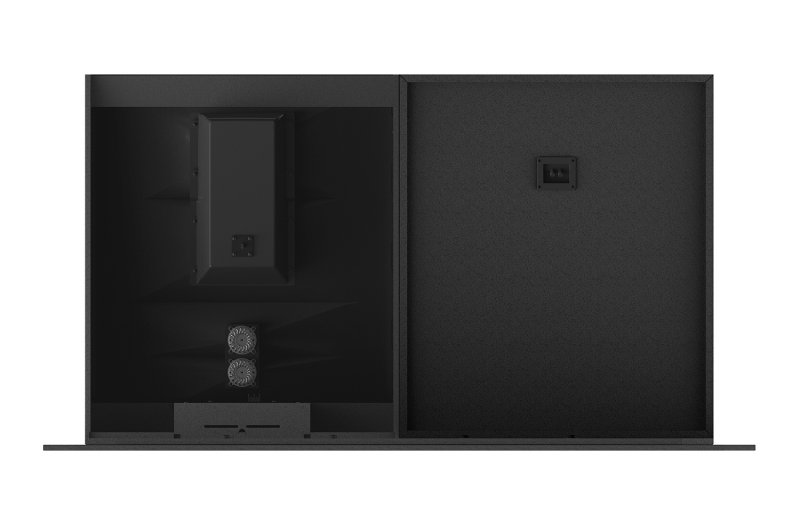

Mid-High Frequency 3732 3-Way Loudspeaker System

Short description

For critical sound reproduction in cinemas utilizing a solid screen. The 3733 uses the 4739 LF for increased low frequency output. The M/HF utilizes Dual Dissimilar Arraying technology to shape the coverage pattern for the optimal use.

Mid-High Frequency 3732 3-Way Loudspeaker System

Name: Mid-High Frequency 3732 3-Way Loudspeaker System
SKU: 3733-M/HF

Brand: JBL

Model: 3733-M/HF

UPC: 691991010415

Please log in to see your price

About This Product

Description:

Three-Way ScreenArray Cinema Loudspeakers. For critical sound reproduction in cinemas utilizing a solid screen. The 3733 uses the 4739 LF for increased low frequency output. The M/HF utilizes Dual Dissimilar Arraying technology to shape the coverage pattern for the optimal use. In addition the horn design improves the frequency response and lowers distortion at higher output. The 2415-XP high frequency drivers represent JBL’s latest HF compression driver, designed to achieve higher output with lower harmonic distortion.

Three-way ScreenArray design for optimal performance for solid screen cinema.

3733 is available only in bi-amp configuration

Design utilizes Dual Dissimilar Arraying technology to improve high frequency coverage and to shape the pattern for raked seating room design

The 2415-XP is JBL's next generation high-frequency compression driver

Advance waveguide design for improved frequency response and higher output with lower distortion

Used in conjunction with CRF2 reflector horns, which are used to reflect high frequency content off a solid screen

CRF2 includes the same HF driver as 3733 to maintain tonal quality

Specifications
