Short description

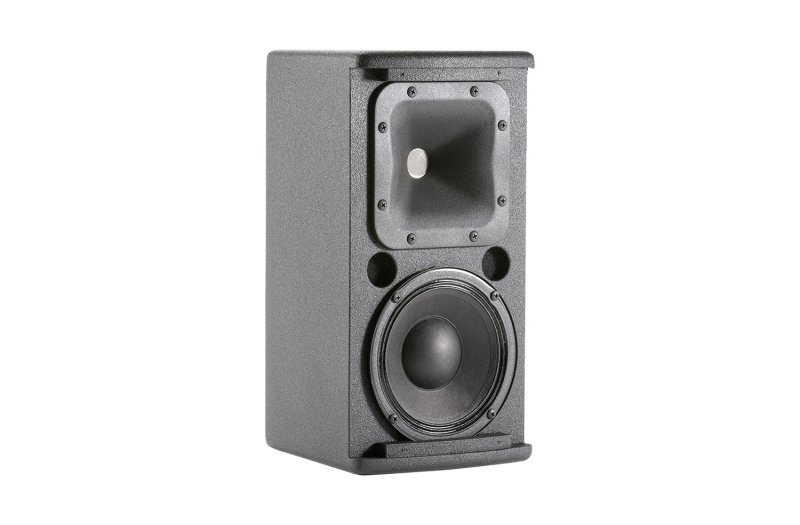

JBL AC16-WRX is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive.
JBL

Loudspeaker Single 6.5" 2-Way

Brand: JBL
Model: AC16-WRX
UPC: 691991010606
Please log in to see your price
About This Product

Description:

JBL AC16-WRX is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90 degree x 90 degree PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC16 utilizes a 6.5" Symmetrical Field Geometry (SFG) LF transducer with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.

Frequency Range 55 Hz -20 kHz (-10 dB)

Frequency Response 65 Hz -18 kHz (±3 dB)

Long-Term System

Coverage Pattern 90° x 90°

Dimensions(H X W X D) 381.0 x 199.4 x 226.1mm

(15.0 x 7.8 x 8.9in)

Weight 7.2 kg (15.8 lb)

Specifications
