Short description
Compact 2-Way Loudspeaker with 2 x 6.5
JBL

Loudspeaker Dual 6.5" 2-Way

Brand: JBL
Model: AC26-WRX
Please log in to see your price
About This Product

Description:

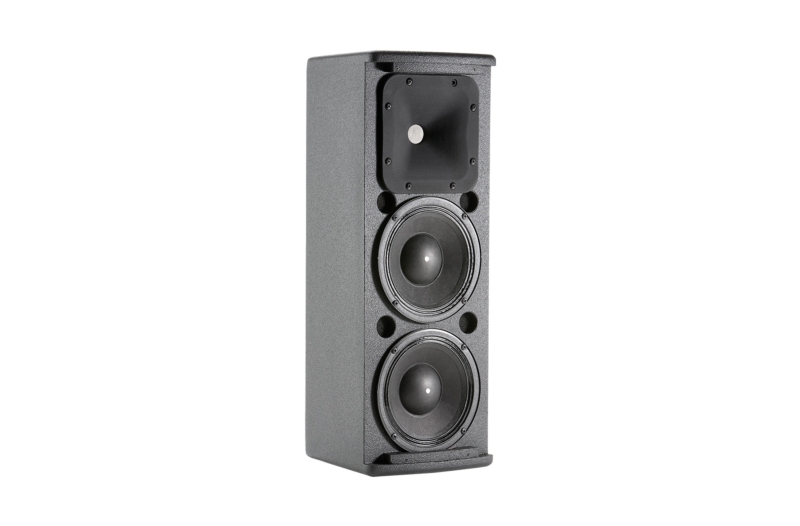

JBL AC26-WRX is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90 x 90 degree PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing.JBL AC26-WRX utilizes dual 6.5" Symmetrical Field Geometry (SFG) LF transducers each with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion. In addition, Filtered Array Technology (FAT) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage.

Frequency Range (-10 dB) 55 Hz - 20 kHz

Frequency Response (+/-3 dB) 70 Hz - 18 kHz

Horizontal Coverage 90Deg.

Vertical Coverage 90Deg.

Directivity Factor (Q) 7 (avg. 500 Hz - 16 kHz)

Directivity Index (DI) 8 dB (avg. 500 Hz - 16 kHz)

System Sensitivity 92 dB SPL/1W/1m

Rated Maximum SPL (1m) 117 dB

System Nominal Impedance 8 Ohms

Specifications
