Local Rack Upgrade Kit

Name: Local Rack Upgrade Kit
SKU: 5100265-00

Brand: Soundcraft

Model: 5100265-00

UPC: 688705003566

Please log in to see your price

About This Product

Description:

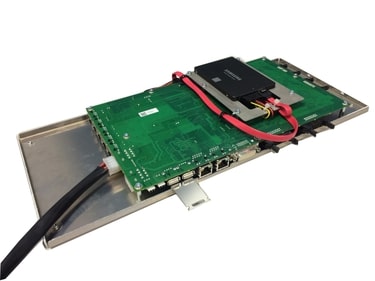

THE VI400/600 CONTROL MODULE IS DESIGNED TO DIRECTLY REPLACE THE VI4/6 ‘SILVER BOX’ CONTROL MODULE AND PROVIDE A FASTER PROCESSOR, MORE RELIABLE PERFORMANCE WITH HARD-SOLDERED DISPLAYLINK-BASED GRAPHICS OUTPUTS RATHER THAN THE PCI GRAPHICS CARD OF THE ORIGINAL SYSTEM. THE NEW MODULE RUNS A VARIANT OF V6.X SOFTWARE, BUT WITH A CUT-DOWN FEATURE SET COMPARED TO VI000- SERIES CONSOLES, APPROPRIATE TO THE CAPABILITIES OF THE VI2/4/6 SURFACE AND LOCAL RACK. A USEFUL APPLICATION FOR THIS UPGRADE WOULD BE TO GIVE AN EXISTING SURFACE A NEW LEASE OF LIFE AND ALLOW IT TO FUNCTION AS AN EMERGENCY BACKUP SURFACE, RATHER THAN BEING DISPOSED OF, WHEN A FULL VI5/7000 UPGRADE IS PURCHASED.

NEW-LOOK 3D-VISTONICS TOUCHSCREEN GRAPHICS, AS VI000-SERIES CONSOLES

30-SECOND FAST-BOOT

FASTER SURFACE RESPONSE, PARTICULARLY ON LAYER CHANGES

FUNCTIONING SETUP BUTTONS FOR ENCODER USER MODE ASSIGN AND F1-6-KEY ASSIGN

SHURE MIC MONITORING

FULL-FEATURED VISI REMOTE, WITH EQ, DYNAMICS & METERING (V6.2 S/W AND VISI REMOTE V3.2 ONWARDS)

‘MIRRORING’ OF TWO CONSOLES (V6.2 S/W ONWARDS) ABILITY TO CONTROL THE CONSOLE ON-LINE USING VIRTUAL VI AS WELL AS THE CONTROL SURFACE

INPUT CHANNELS ASSIGNABLE TO MASTER BAY FEATURE (V6.2 S/W ONWARDS)

INCREASED NUMBER OF INSERT POINTS (64) AND TIE LINES (128)

ABILITY TO USE THE UPGRADED SURFACE WITH EITHER A VI4/6 ‘CLASSIC’ LOCAL RACK, OR A VI5/7000 LOCAL RACK * LOCAL I/O CAN EITHER USE ORIGINAL PASSIVE BREAKOUT BOX ON CLASSIC LOCAL RACK, OR ABB ON VI5/7000 LOCAL RACK

ABILITY TO BENEFIT FROM FUTURE SOFTWARE UPDATES ON THE V6.X SOFTWARE PLATFORM (NEW FEATURES MAY BE RESTRICTED COMPARED WITH VI000-SERIES DUE TO THE LIMITATIONS OF THE SURFACE AND DSP IN THE LOCAL RACK)

Specifications
