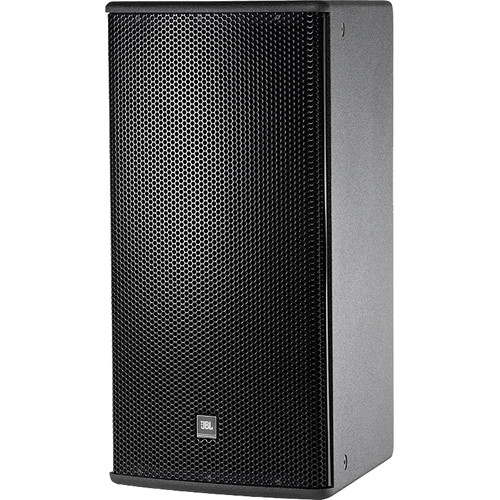

High Power 2-Way Loudspeaker With 1 X 12" Lf & Rotatable Horn, Black

Short description

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil.

High Power 2-Way Loudspeaker With 1 X 12" Lf & Rotatable Horn, Black

Name: High Power 2-Way Loudspeaker With 1 X 12" Lf & Rotatable Horn, Black
SKU: AM7212/64

Brand: JBL

Model: AM7212/64

UPC: 691991011344

Please log in to see your price

About This Product

Description:

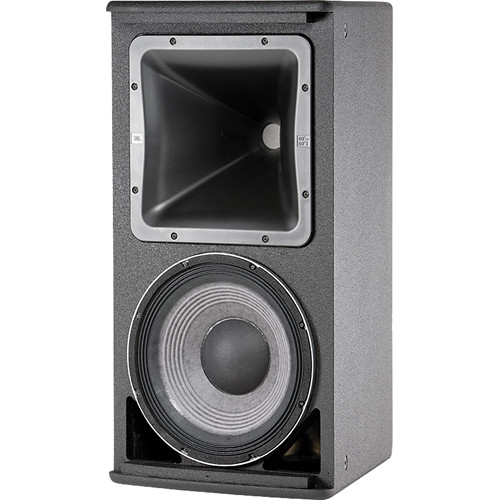

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Frequency Range ( –10 dB) 36 Hz - 20 kHz

Frequency Response ( ± 3 dB) 42 Hz - 18 kHz

Coverage Pattern 60° x 40°

LF Driver 2262H

HF Driver 2432H

System Type 12"""" Two - Way, High Power, Full - Range

Dimensions (H x W x D) 711 x 369 x 458 mm (28 x 14.5 x 18 in)

Weight 23.1 kg (51 lb)

Crossover Modes Bi-amp/Passive switchable

Passive Crossover Frequency 1.8 kHz

Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs

Long-Term System Power Rating (IEC) Passive mode: 600 W (2400 W peak), 100 hrs

Maximum SPL (dB-SPL, 1W @ 1m) Bi-amp mode: LF: 126 dB-SPL cont avg (132 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 123 dB-SPL cont avg (129 dB peak)

System Sensitivity (1W @ 1m) Passive mode: 95 dB SPL

Nominal Impedance 8 ohms
