High-Performance Wireless Stationary Receiver

Short description

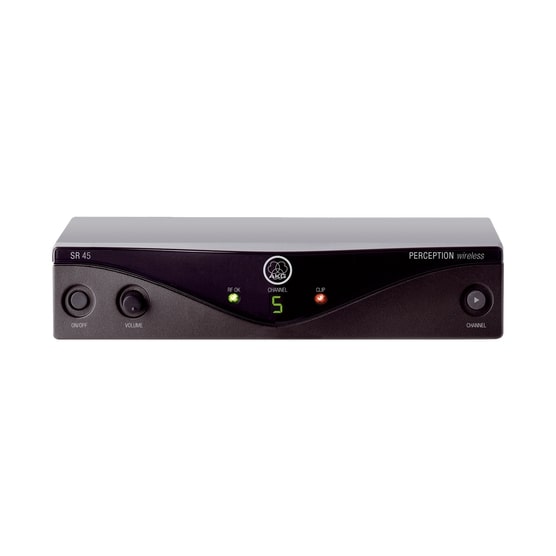

The SR45 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels.

High-Performance Wireless Stationary Receiver

Name: High-Performance Wireless Stationary Receiver
SKU: SR45-BAND-A

Brand: AKG

Model: SR45-BAND-A

UPC: 885038027669

Please log in to see your price

About This Product

Description:

The SR45 analog high-performance space diversity wireless receiver provides maximum ease of use with different channel presets up to eight channels. It is perfect for instrumental and vocal performances in small clubs as well as for use in houses of worship and in conference rooms. The SR45 provides an audio clipping and RF signal LED for easy monitoring of systems status. Best audio signal output is provided via both a professional XLR and a 1/4" jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.

Carrier frequency range 500 – 865 MHz

Modulation FM (Frequency Modulation)

Audio bandwidth 40 – 20,000 Hz (+/- 3dB)

T.H.D. at 1 kHz typ. 0.8%

Signal/noise ratio typ. 105 dB(A)

Squelch threshold -100 to -70 dBm adjustable

Audio outputs Balanced XLR and unbalanced 1/4" (6.3 mm) jack - adjustable from mic to line level. Output level at rated deviation = 500 mV rms

Specifications
