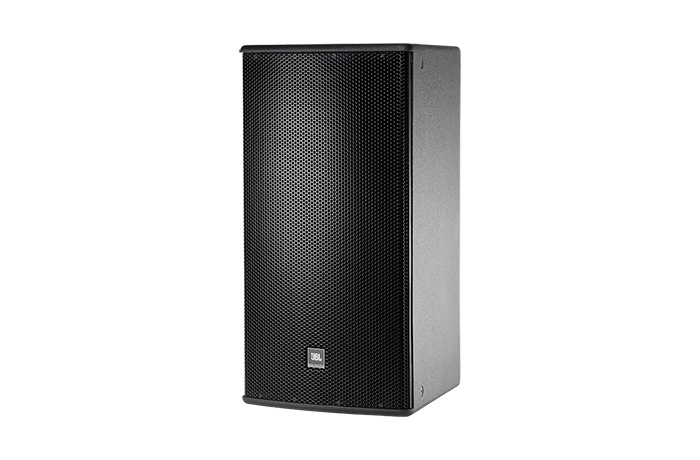

Extreme Weather Protection High Power 2-Way Loudspeaker With 1 X 15" Lf & Rotatable Horn, Black

Short description

Extreme Weather Protection High Power 2-Way Loudspeaker With 1 X 15" Lf & Rotatable Horn, Black

Name: Extreme Weather Protection High Power 2-Way Loudspeaker With 1 X 15" Lf & Rotatable Horn, Black
SKU: AM7215/26-WRX

Brand: JBL

Model: AM7215/26-WRX

Please log in to see your price

About This Product

Description:

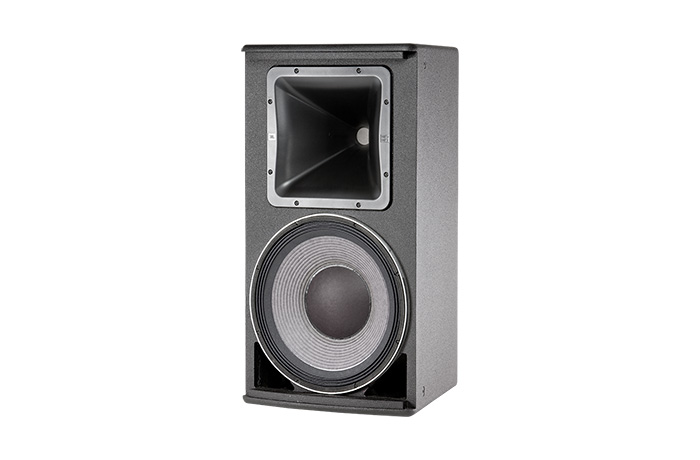

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Frequency Range ( –10 dB) 34 Hz - 20 kHz

Frequency Response ( ± 3 dB) 40 Hz - 18 kHz

Coverage /64: 60° x 40°, /66: 60° x 60° , /95: 90° x 50° , /26: 120° x 60°

LF Driver 2265H

HF Driver 2432H

System Type 15"" Two - Way, High Power, Full – Range

Dimensions (H x W x D) 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)

Weight 27.2 kg (60 lb)

Crossover Modes Bi-amp/Passive switchable

Passive Crossover Frequency 1.8 kHz

Transducer Power Rating (AES) LF: 1000 W (4000 W peak), 2 hr 750 W (3000 W peak), 100 hrs

HF: 100 W (400 W peak), 2 hrs

Long-Term System Power Rating (IEC) Passive mode: 600 W (2400 W peak), 100 hrs

Maximum SPL (dB-SPL, 1W @ 1m) Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak)

HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 124 dB-SPL cont avg (130 dB peak)

System Sensitivity (1W @ 1m) Passive mode: 96 dB SPL

Nominal Impedance 8 ohms
