Short description
The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap.
JBL

Extreme Weather Protection 2-Way Loudspeaker System With 1 X 12" Lf Speaker, Black

Brand: JBL
Model: AM7212/95-WRX
Please log in to see your price
About This Product

Description:

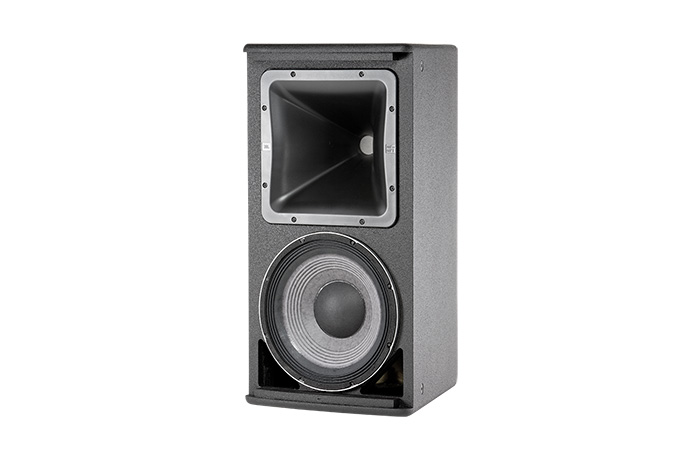

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Coverage 90° x 50°

2262H Differential Drive low-frequency driver

2432H high-frequency compression driver

Large PT Progressive Transition waveguide for excellent pattern control and low distortion

Rotatable waveguide for vertical or horizontal orientation

Bi-amp/passive switchable

Specifications
