Short description
The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit.
JBL

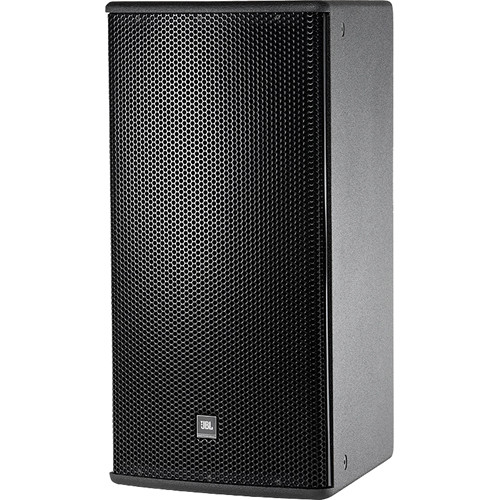

Extreme Weather Protection 12" High Power 2-Way Loudspeaker LF & Rotatable Horn, Black

Brand: JBL
Model: AM7212/26-WRX
UPC: 691991011337
Please log in to see your price
About This Product

Description:

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Coverage 120° x 60°

2262H Differential Drive® Low- Frequency Driver

2432H High-Frequency Compression Driver

Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion

Rotatable waveguide for vertical or horizontal orientation

Bi-Amp/Passive Switchable

Specifications
