Short description
The CSM 28 - Eight Inputs/Two Outputs Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and
JBL

Eight Inputs/Two Outputs Commercial Series Mixer

Brand: JBL
Model: CSM28
UPC: 871015008585
Please log in to see your price
About This Product

Description:

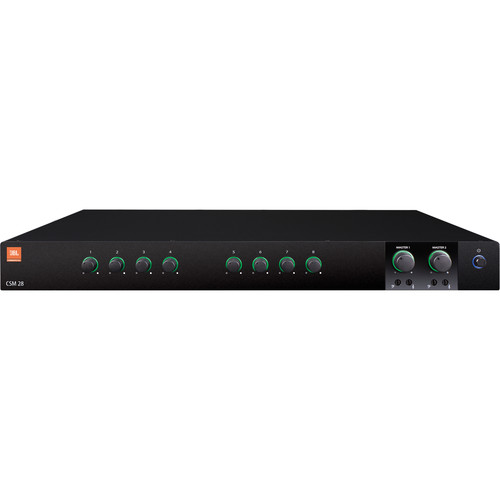

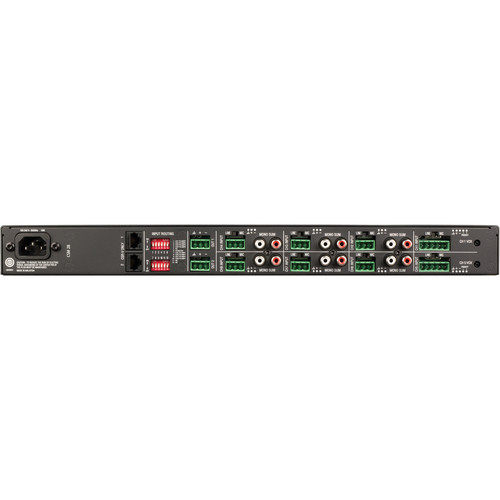

The CSM 28 - Eight Inputs/Two Outputs Commercial Series Mixer by JBL is backed by the combined technological prowess of multiple Harman brands and can be easily configured for a wide range of applications such as providing background music, security, and paging in schools, hospitals, restaurants, and fitness facilities. For I/O, the mixer features Euroblock type mic/line input and output connectors, as well as unbalanced RCA inputs. The chassis features illuminated rings that makes them easier to see and use for the dedicated volume, bass, and treble controls. The rear panel of the mixer features an array of DIP switches for configurable input/output routing.

Inputs 8

Outputs 2

Line Output Level 5.0 V RMS into 10 kOhms

Frequency Response 20 to 20,000 Hz ±1 dB

Total Harmonic Distortion 0.05% typical

Signal to Noise Ratio >90 dB

Input Impedance Mic: 400 ohms Line: 20 kOhms RCA: 50 kOhms

Crosstalk >70 dB

Tone Controls Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10,000 Hz

Input Sensitivity Mic: 3 mV RMS Line: 300 mV RMS RCA: 300 mV RMS

Phantom Power +27 VDC

Muting Priority

Input/Output AC Line Voltage 100 to 240 V, 50/60 Hz

Operating Temperature / Humidity 32 to 104°F (0 to 40°C) 95% R.H. (non-condensing)

Storage Temperature 68 to 185°F (-20 to 85°C)

Dimensions 1.7 x 17.2 x 11.9" (43.3 x 437 x 303.4 mm)

Weight 7.5 lb (3.4 kg)

Specifications
