The Soundcraft Vi3000 features an all-new appearance with a more efficiently designed control surface, 36 faders, 24 mono/stereo busses and a sweeping black screen panel with four Vistonics II™ touchscreen interfaces with sleek,updated 3D graphics. Becaus
Soundcraft

Digital Live Sound Console

Brand: Soundcraft
Model: 5042680
UPC: 688705000862
Please log in to see your price
About This Product

Description:

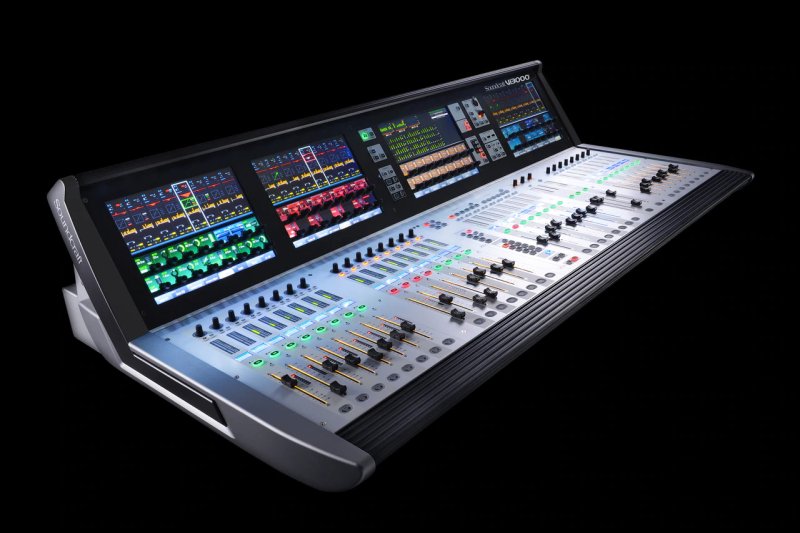

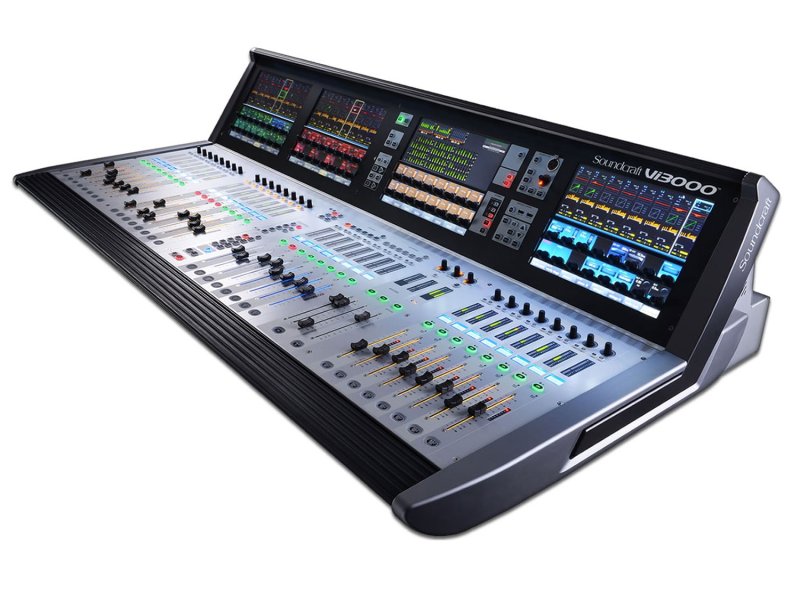

The Soundcraft Vi3000 features an all-new appearance with a more efficiently designed control surface, 36 faders, 24 mono/stereo busses and a sweeping black screen panel with four Vistonics II™ touchscreen interfaces with sleek,updated 3D graphics. Because the Vi3000 has four touchscreens, it's the only console in its class that can be used by two engineers at the same time. The Soundcraft Vi3000 offers extensive rear panel connectivity. In addition to a full complement of analog and digital inputs and outputs, the console provides MIDI, USB, Ethernet, DVI out, Dante/MADI record feed outputs, redundant power supply and other connections. The Vi3000 has two expansion bays that can be fitted with MADI Stagebox cards, to connect multiple Soundcraft Stagebox input expander modules. The Vi3000 can also accommodate the new Soundcraft Realtime Rack, a hardware/software unit designed in collaboration with plug-in manufacturer Universal Audio that provides access to 74 industry-standard UAD plug-ins. The Vi3000 is the first Soundcraft console to incorporate a Dante interface as standard, for seamless digital audio networking with Dante-enabled devices. Along with its greatly expanded functionality, the Vi3000 retains all the features that have made the Soundcraft Vi Series the consoles of choice for live sound engineers worldwide, such as FaderGlow™ illuminated faders that display different colors according to function, the ability to store and recall snapshots and cues, compatibility with Soundcraft's ViSi app that allows remote control from an iPad, built-in Lexicon reverb/delays, dbx compression, effects and more.

Stagebox Mic input to Line output +0/-1dB,20Hz-20kHz

AES/EBU In to AES/EBU Out +0/-0.2dB,20Hz-20kHz

Stagebox Mic In (min gain) to Local Line Out <0.003% @ 1kHz

Stagebox Mic In (max gain) to Local Line Out <0.020% @ 1kHz

Local Line In to Line Out <0.003% @ 1kHz

Mic Input E.I.N. <-126dBu (150 Ohm source)

22Hz-22kHz bandwidth,unweighted

Residual Noise -91dBu

Stagebox line output; no inputs routed, Mix fader @0dB

CMRR,Stagebox Mic input 80dB @ 1kHz

Sampling Frequency 48kHz

Stagebox Mic Input to Local Line output

Specifications
