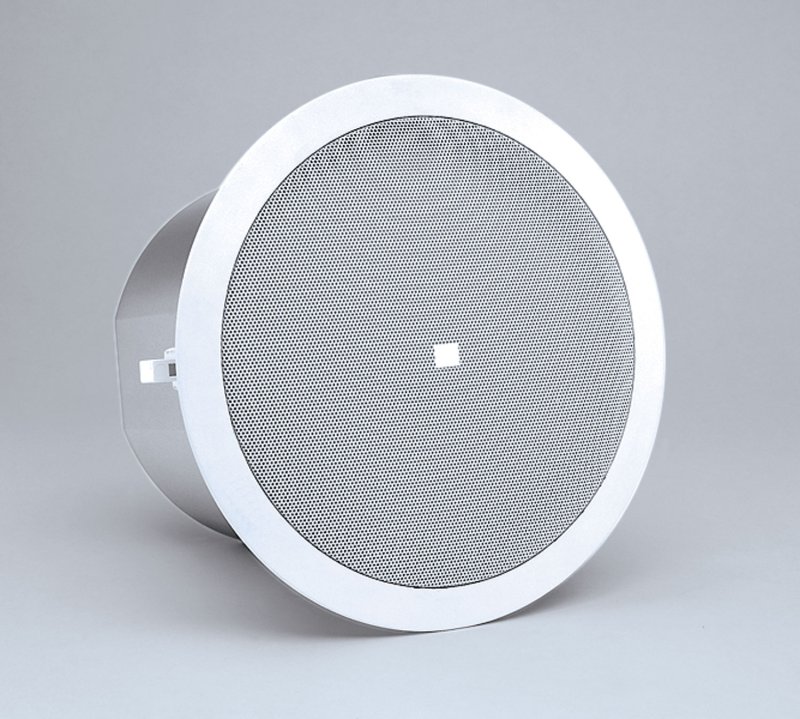

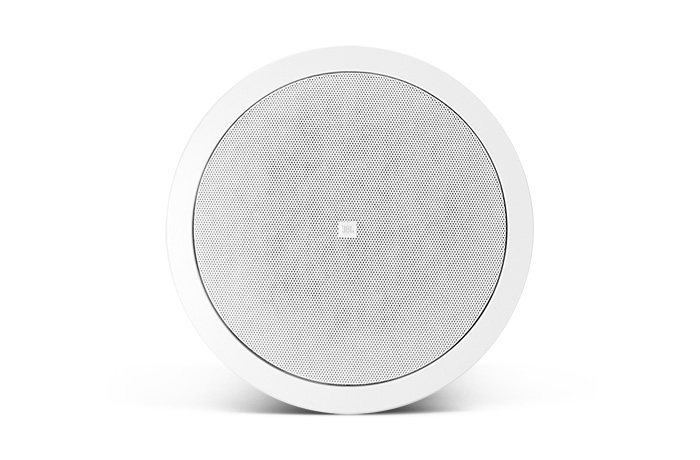

6.5" Ceiling Loudspeaker Transducer Assembly (Priced Each, Sold In Pairs)

Short description

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area.

6.5" Ceiling Loudspeaker Transducer Assembly (Priced Each, Sold In Pairs)

Name: 6.5" Ceiling Loudspeaker Transducer Assembly (Priced Each, Sold In Pairs)
SKU: CONTROL-26CT

Brand: JBL

Model: CONTROL-26CT

UPC: 050036904087

Please log in to see your price

About This Product

Description:

The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.

Frequency Range 75 Hz - 20 kHz

Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise

Transformer Taps 70 V: 60 W, 30 W, 15 W, & 7.5 W

Nominal Coverage Angle 110°

Directivity Index (DI) 4.6 dB

Rated Maximum SPL 106 dB SPL @ 1m (3.3 ft)

Low Frequency 165 mm (6.5 in)

High Frequency 19 mm (.75 in) titanium

Terminations Screw locking barrier strip

Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in) Net Weight (ea) 4.2 kg (10 lbs) Shipping Weight (pair) 9.7 kg (21 lbs)
