Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Capacity 200 W Peak
100 W Continuous Program Power
50 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps
Nominal Impedance 8 ohms

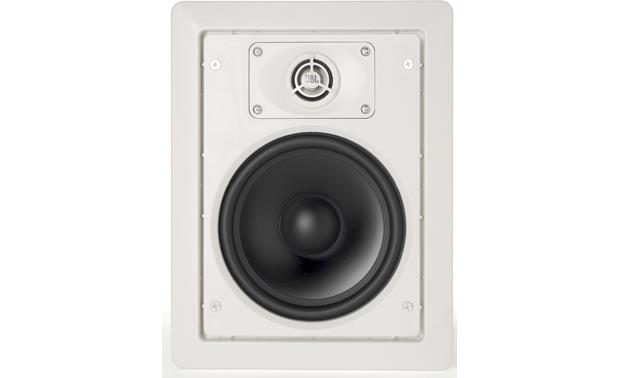

Low Frequency 165 mm (6.5 in) polymer-coated aluminum cone.
High-Frequency 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Terminations Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 20 to 40 liters (0.7 to 1.4 cu ft)
Outside Dimensions
(H x W x D) 280 x 215 x 105 mm (11 x 8.5 x 4.1 in), 99 mm (3.8 in) front of wall to back of speaker.
Maximum Wall Thickness 2 mm (1.25 in)
Cutout Size (H x W) 246 x 181 mm (9.7 x 7.2 in),
Net Weight (ea) 2.7 kg (5.9 lb)
Shipping Weight (ea) 6.2 kg (13.5 lb)
Included Accessories Cutout template & paint shield
Optional Accessories MTC-126RIF Rough-In Frame for new construction installation to wallstuds.
