Excellent voice range clarity for announcement and paging.
High sensitivity delivers high sound levels with minimal power amplification.
Wide 70° horizontal by 90° vertical coverage for medium throw applications.
Phenolic diaphragm driver for outdoor durability and high reliability.

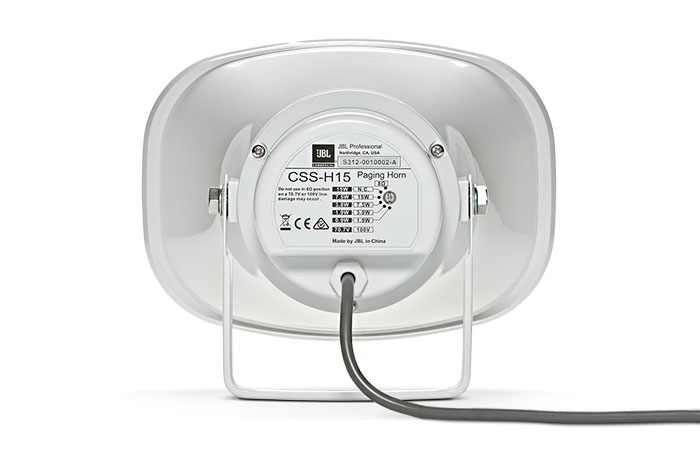

UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
Built-in high-pass filter enhances reliability by protecting against low frequency damage.
Highly weather-resistant, with stainless steel bracket and hardware.
Frequency Response (-10 dB) 400 Hz – 7.5 kHz
Coverage Pattern 70° horizontal by 90° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 10.9 (2 kHz)
Directivity Index (DI) 10.4 (2 kHz)
System Power Rating 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m) 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;
123 dB cont ave. (129 dB peak), 2 kHz, 15W input,
8 ohm setting
