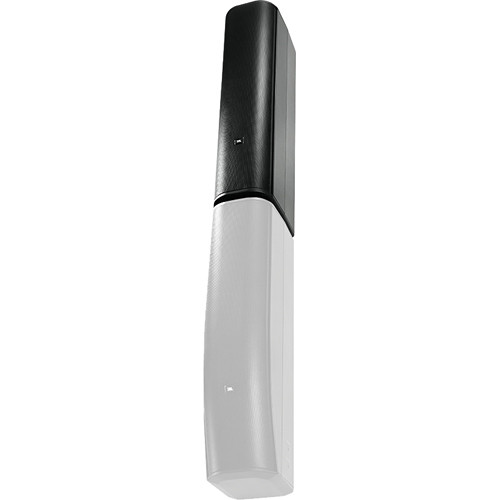

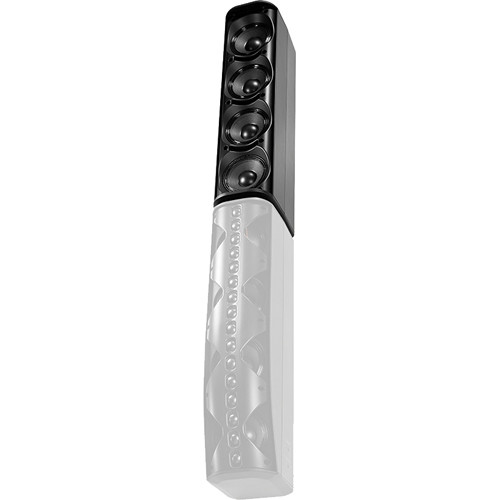

Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
500 Watt power handling (70JE-1)
Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
Coupler plate included (70JE-1)
Extended pattern control (to 400 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation)
Extended bass response to 45 Hz.
Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers.
Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard
third-party brackets)
