Frequency Response (-10 dB) 55 Hz – 20 kHz Frequency Range (±3 dB) 78 Hz – 18 kHz Power Capacity 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
150 Watts Continuous Program Power Nominal Sensitivity 86 dB Nominal Coverage Angle 120° (+20°/-10°) Directivity (Q) 5.3 Directivity Index (DI) 7.2 dB Rated Maximum SPL @ 1m 105 dB continuous pink noise, 111 dB peak Rated Impedance 8 ohms Transformer Taps 70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, 15W Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W LF Driver 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround,

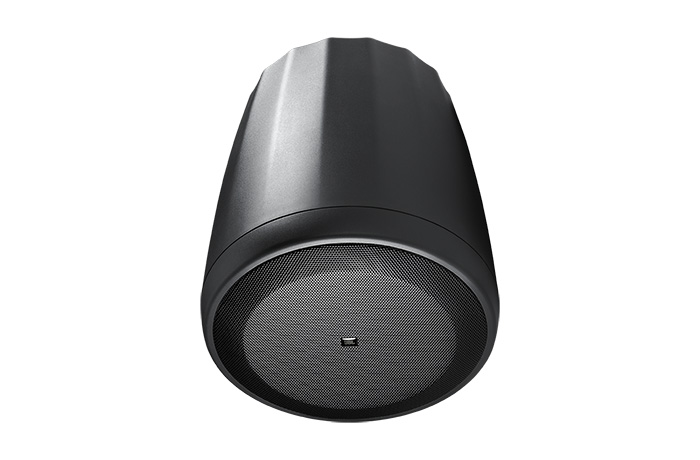

25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF Driver 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former Enclosure Material High impact polystyrene Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable

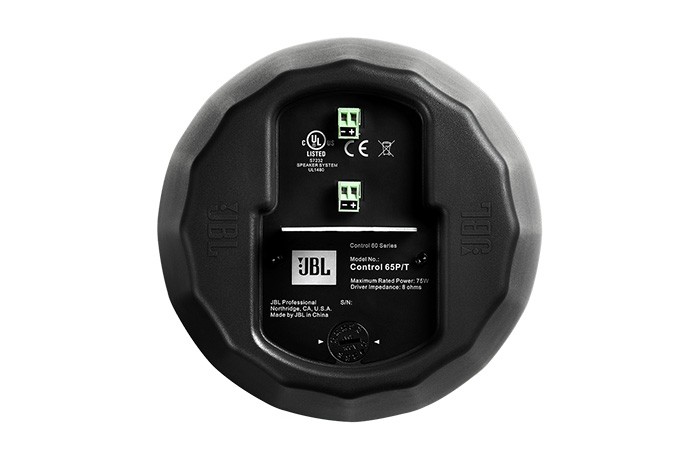

for painting) Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating
of 45 kg (99 lb). Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3
