Short description

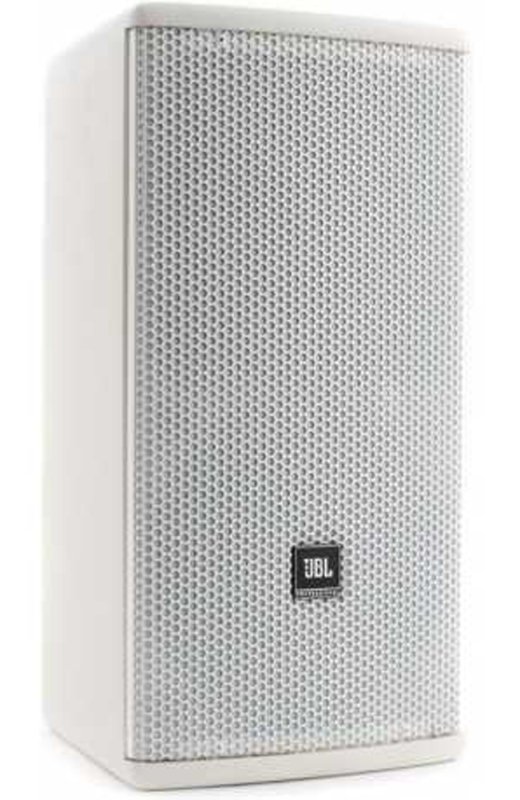

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil.
JBL

Passive / Biamp 2-Way 15" Loudspeaker System, White

Brand: JBL
Model: AM5215/26-WH
UPC: 691991011108
Please log in to see your price
About This Product

Description:

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

265H-1 Differential Drive® Low-Frequency Driver

2408H-1 High-Frequency Compression Driver

Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion

Rotatable waveguide for vertical or horizontal orientation

Bi-Amp/Passive Switchable

Specifications
