Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Capacity 200 W Peak
100 W Continuous Program Power 50W Continuous Pink Noise Sensitivity 90 dB SPL, 1W, 1 m (3.3 ft)
Nominal Impedance 8 ohms

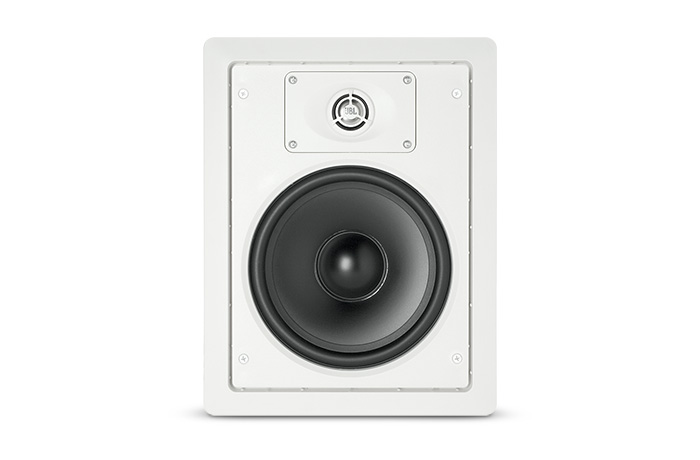

Low Frequency 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround.
High-Frequency 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Terminations Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
Optimum Air Cavity
Behind Speaker 40 to 80 liters (1.4 to 2.8 cu ft)
Outside Dimensions
(H x W x D) 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker.
Maximum Wall Thickness 32 mm (1.25 in)
Cutout Size (H x W) 300 x 225 mm (11.9 x 8.9 in), Cutout template included.
Net Weight (ea) 2.6 kg (5.5 lb)
Shipping Weight (ea) 128 W: 5.9 kg (13.0 lb)
Included Accessories Cutout template & paint shield
Optional AccessoriesMTC-128RIF Rough-In Frame for new construction installation to wallstuds.
