64-Channel Digital Mixing Console MO

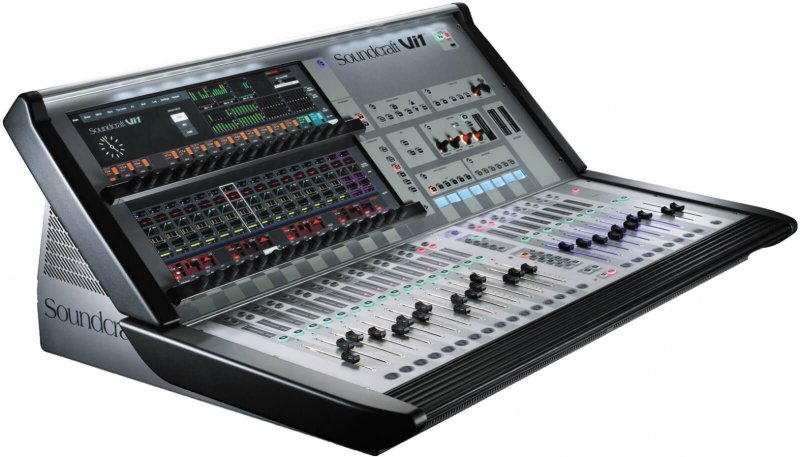

Soundcraft Vi1 - a compact digital console + system stage rack in a single package. It has 32 analog inputs, managed 16 faders, mixed to the 27 analog outputs 10 faders. Also, 6 digital inputs, 4 stereo FX return and 6 digital outputs. Standard 38 input channels can be expanded to 64 by adding optional stage switching unit. Inputs: Each input has Analog Gain, Digital Trim, Delay, HPF, LPF, quad parametric EQ, compressor, limiter, gate or de-essor, Pan - LR or LCR switchable. Outputs: Bus 24 Grp / Aux / Matrix, plus the tire basic LCR Mix, on each: HPF, quad parametric EQ, compressor, imiter, delay, graphic EQ. Other characteristics: 4 independent effects processors Lexicon, a 22-inch touch-screen monitor, user interface Vistonics II, FaderGlow - color lights faders depending on the function. Two built-in power supply, the possibility of Stagebox (optional). Features Input / Output: Each of the following I / O can be replaced with the input, direct output, bus output or insert point as required: Inputs: 32 analog mic / line inputs; 2 pairs of AES / EBU inputs (4 channels); 1 pair of coaxial SPDIF (2 channel); Intercom 1 microphone input (mounted on a mixing board). Outputs: 32 analog line outputs; 8 pairs of AES / EBU outputs (16 channels); 2 pairs of AES / EBU outputs (4 channels); 1 pair of coaxial SPDIF (2 channel). Additionally, you can install an expansion card, such as a 64-channel card MADI to add a stage switching unit StageBox or recording (optical or CAT5), 16-channel Aviom card (output), 32-channel CobraNet I / O card, 4 -channel mic-input card with 8-channel line input or output, 16-channel ADAT I / O card.
