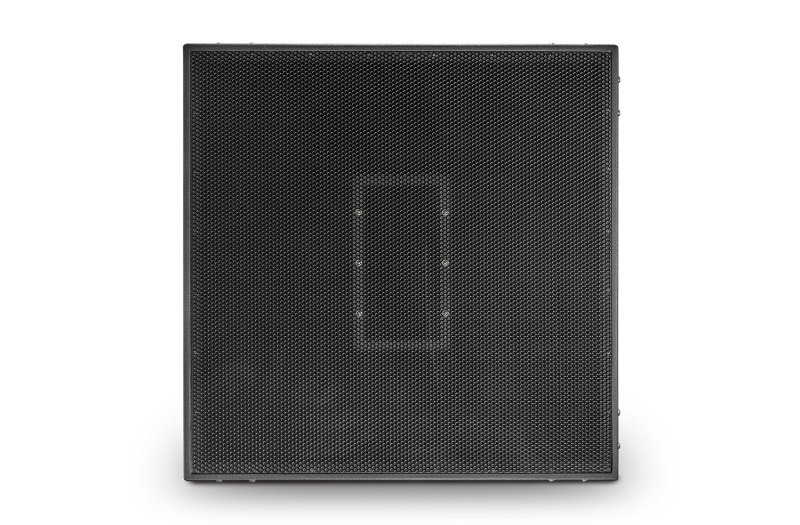

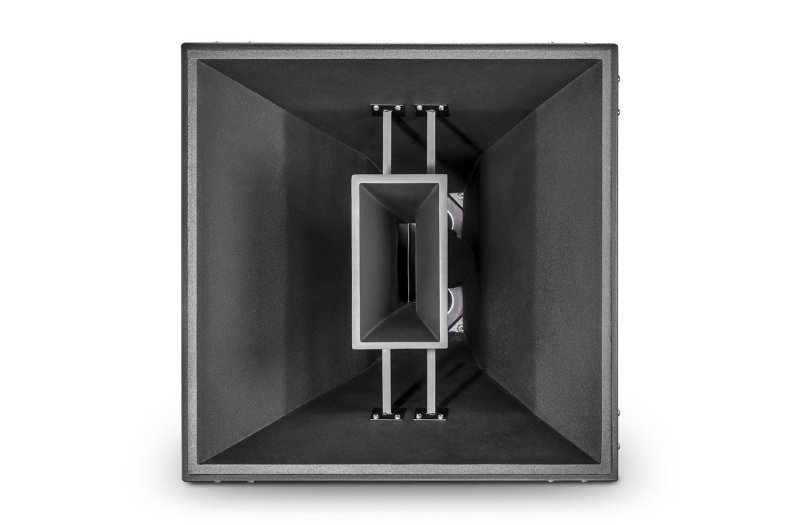

60 x 40° Mid / High Frequency Coaxial Speaker (Extreme Weather Protection Treatment)

Short description

The PD764 Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs.

60 x 40° Mid / High Frequency Coaxial Speaker (Extreme Weather Protection Treatment)

Name: 60 x 40° Mid / High Frequency Coaxial Speaker (Extreme Weather Protection Treatment)
SKU: PD764-WRX

Brand: JBL

Model: PD764-WRX

Please log in to see your price

About This Product

Description:

The PD764 Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764 may be used in clusters with other PD family modules or singly as part of a distributed system. PD100 series low-frequency elements may be added to the array to extend bandwidth and pattern control to the lowest octaves.

60 by 40 Coverage Pattern-symmetrical frontal dimensions allow horizontal or vertical orientation within an array.

IFS Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.

Dual 8 in horn loaded cone mid frequency drivers provide 6 dB greater output than traditional designs.

Pattern control maintained to below 400 Hz.

Co-axial mid / high-frequency module layout improves mid frequency arrayability and minimizes size.

Integrated rigging system simplifies array design and construction.

Specifications
