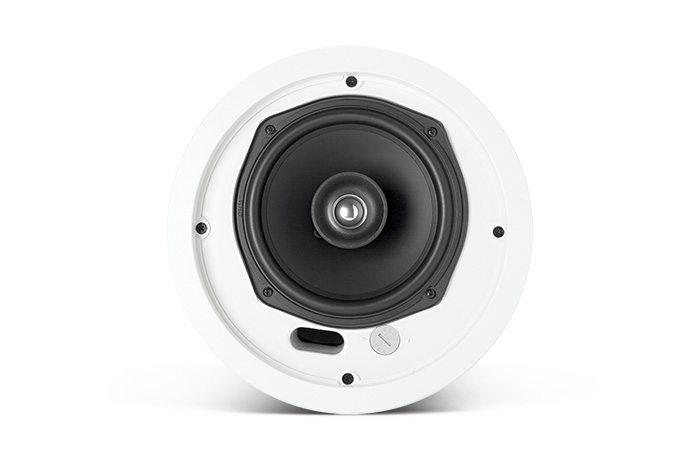

Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
High power, wide frequency response and low distortion for high sound level capability.
JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.

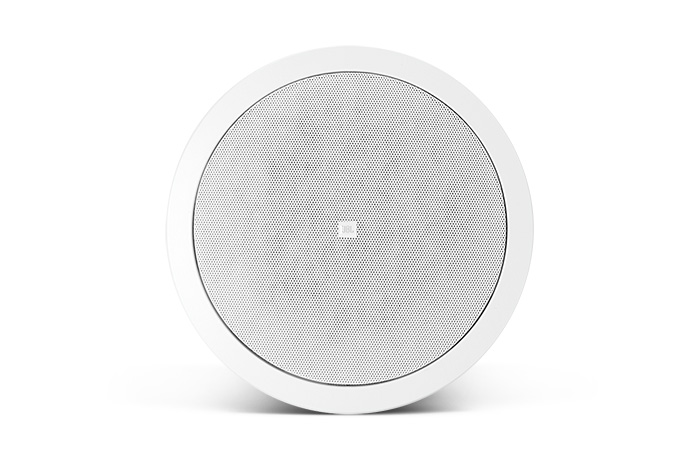

Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Frequency Range 75 Hz - 20 kHz
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Nominal Sensitivity 89 dB, 1m/1 W
Nominal Coverage Angle 110°
Directivity Index (DI) 4.6 averaged 500 Hz to 4 KHz
Nominal Impedance 16 ohms
Rated Maximum SPL 107 dB SPL @ 1m (3.3 ft)
Low Frequency 165 mm (6.5 in)
High Frequency 19 mm (.75 in) titanium
Terminations Screw locking barrier strip
Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in)
Net Weight (ea) 2.7 kg (6 lbs)
Shipping Weight (pair) 6.4 kg (15 lbs)
