Control Module Upgrade

Name: Control Module Upgrade
SKU: 5064930.V

Brand: Soundcraft

Model: 5064930.V

Please log in to see your price

About This Product

Description:

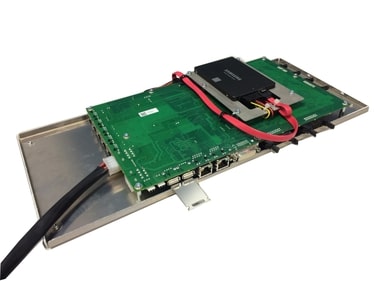

The Vi400/600 Control Module is designed to directly replace the Vi4/6 ‘silver box’ Control Module and provide a faster processor, more reliable performance with hard-soldered DisplayLink-based graphics outputs rather than the PCI graphics card of the original system. The new module runs a variant of V6.x software, but with a cut-down feature set compared to Vi000- series consoles, appropriate to the capabilities of the Vi2/4/6 surface and Local Rack. A useful application for this upgrade would be to give an existing surface a new lease of life and allow it to function as an emergency backup surface, rather than being disposed of, when a full Vi5/7000 upgrade is purchased.

New-look 3D-Vistonics touchscreen graphics, as Vi000-series consoles

30-second Fast-boot

Faster surface response, particularly on layer changes

Functioning Setup buttons for encoder USER mode assign and F1-6-key assign

Shure Mic Monitoring

Full-featured ViSi Remote, with EQ, Dynamics & metering (V6.2 s/w and ViSi Remote V3.2 onwards)

‘Mirroring’ of two consoles (V6.2 s/w onwards)

Ability to control the console on-line using Virtual Vi as well as the Control Surface

Input channels assignable to Master Bay feature (V6.2 s/w onwards)

Increased number of insert points (64) and tie lines (128) Ability to use the upgraded Surface with either a Vi4/6 ‘Classic’ Local Rack, or a Vi5/7000 Local Rack *

Local I/O can either use original passive breakout box on Classic Local Rack, or ABB on Vi5/7000 Local Rack

Ability to benefit from future software updates on the V6.x software platform (new features may be restricted compared with Vi000-series due to the limitations of the surface and DSP in the Local Rack)
