3-Way Loudspeaker System

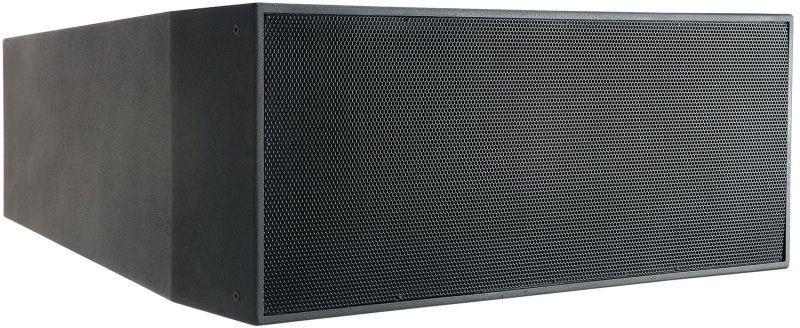

JBL VLA301H-WRX is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs. The modular design concept provides the system designer the ability to build large line array systems for larger venue applications or to design smaller line array systems for use as distributed clusters in arenas, domed stadiums and larger performance spaces, including large houses-of-worship. JBL VLA301H-WRX is designed specifically for permanent installation applications where even coverage, intelligibility and levels capable of overcoming crowd noise are required. VLA modules are based on the same advanced engineering used in the highly successful VERTEC Series line array systems. VLA goes one step further than VERTEC by providing six large format horn-loaded modules with three horizontal horn coverage patterns (30deg., 60deg. & 90deg.). This modular concept provides the designer the additional flexibility to vary the horizontal pattern within a vertical array by incorporating different modules with wider or narrower coverage patterns while still maintaining the vertical directivity. The VLA301H-WRX uses JBL proven technology components. The mid and high frequency sections are horn-loaded for maximum sensitivity and optimum pattern control. The midrange section features the patented technology of the CMCD82H 200 mm (8 in) cone mid-range compression driver with dual 75 mm (3 in) voice coils coupled to a driver/phasing plug assembly providing high output with low distortion. The high-frequency section features the 2431H 38 mm (1.5 in) throat diameter 75 mm (3 in) aluminum diaphragm, neodymium high-frequency drivers. The low-frequency section utilizes the 2226H 380 mm (15 in) driver with a 100 mm (4 in) voice coil. Enclosures feature 16 mm (5/8-inch) exterior grade 12-ply birch plywood. Grilles are powder coated 14 gauge acoustically transparent perforated steel.
