Frequency Range (-10 dB) 41 Hz - 20 kHz (Preset: Flat) Horizontal Coverage (-6 dB) 60° nominal (500 Hz – 16 kHz) Vertical Coverage Varies with array size and configuration. System Power Ratings LF: 1000W Continuous (IEC /100 hour)MF: 400W Continuous (IEC /100 hour) HF: 160W Continuous (IEC /100 hour)
Maximum SPL 147.2dB (Preset: Flat)

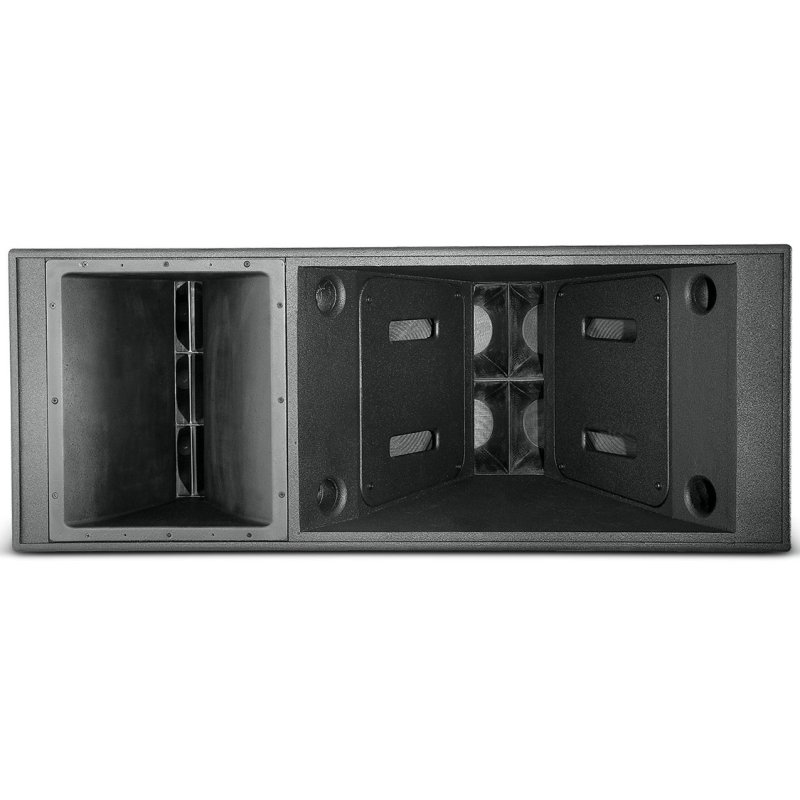

Low Frequency Driver 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance 4 ohms
Mid-Frequency Driver 2 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance 4 ohms
High-Frequency Driver 3 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet Nominal Impedance 16 ohms
Enclosure 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
Suspension Attachments 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)
Input Connectors Barrier Strip for #6 spade lug, including gland nut and cover plate
Environmental Specifications Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D) 528.3mm x 1346.2mm x 767.1mm (20.8in x 53.0in x 30.2in)
Net Weight 100.7kg (222.0lbs)
