Short description

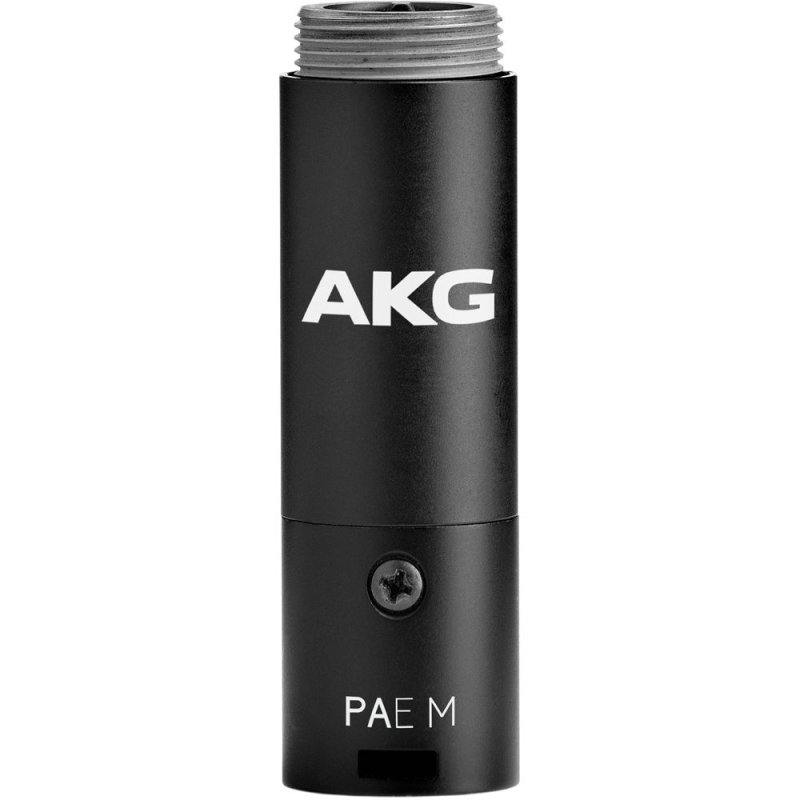

The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers.
AKG

3-Pin XLR Phantom Power Module Adapter

Brand: AKG
Model: PAE-M
UPC: 885038030676
Please log in to see your price
About This Product

Description:

The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise. The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

Audio frequency bandwidth 20 - 20000 Hz

Bass cut filter 150 Hz

Electrical impedance < 600 Ohms

Recommended load impedance > 2000 Ohms

Voltage 9 to 52 V

Current 3.5 mA

Type Balanced XLR

Gender Male

Contacts 3-pin

Specifications
