Short description
Ultra-Compact 2-Way Loudspeaker with 1 x 6.5
JBL

2-Way Loudspeaker 6.5"

Brand: JBL
Model: AC16-WRC
UPC: 691991028915
Please log in to see your price
About This Product

Description:

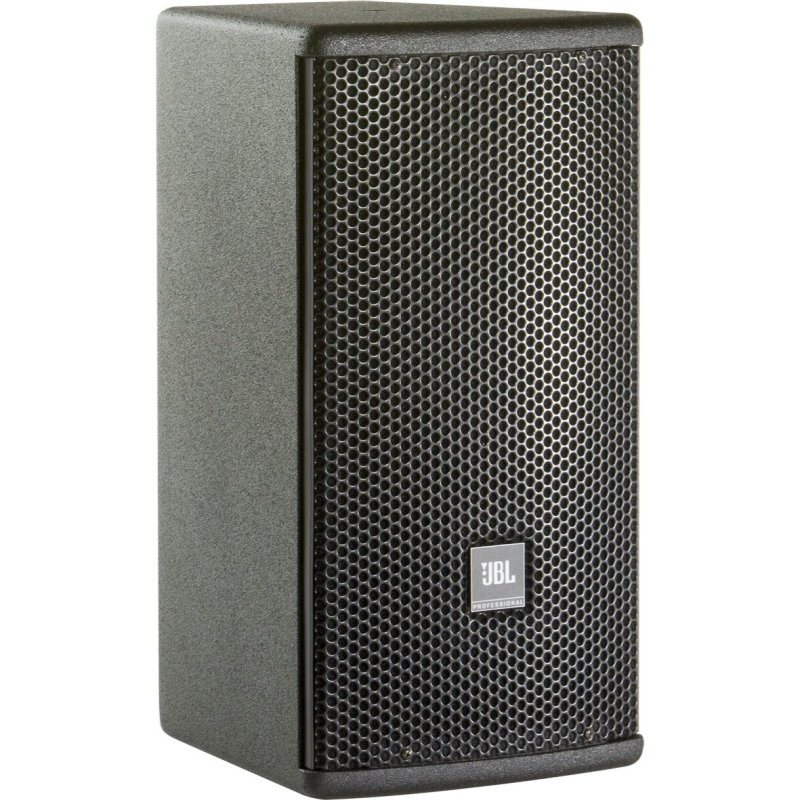

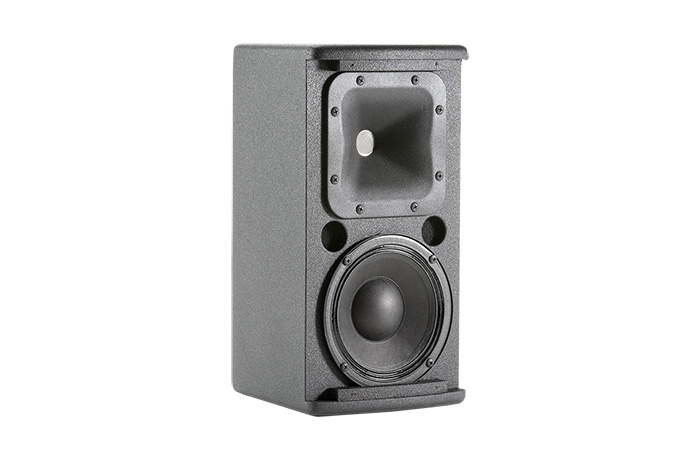

JBL AC16-WRC is an ultra-compact full range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90 degree x 90 degree PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC16-WRC utilizes a 6.5" Symmetrical Field Geometry (SFG) LF Transducer with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.

Frequency Range (-10 dB): 55 Hz -20 kHz

Frequency Response (+/-3 dB): 65 Hz -18 kHz

Long-Term System

Power Rating: Continuous/Program/Peak: 160 W / 320 W / 640 W

Impedance: 16 ohms Coverage Pattern: 90 x 90

Dimensions (H X W X D): 381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)

Weight: 7.2 kg (15.8 lb)

Specifications
