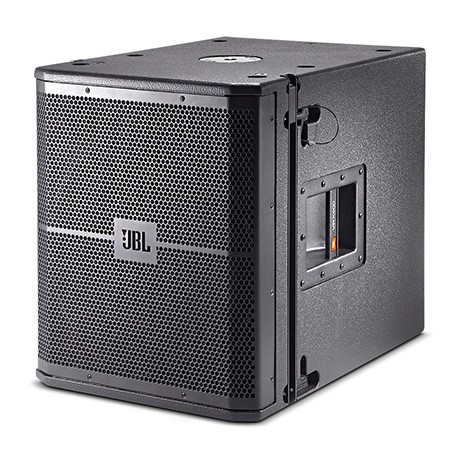

Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output.
Light and compact for versatility and easy handleability.
20 mm threaded pole socket for solid, secure satellite speaker mounting.
Power Rating 800 W / 1600 W / 3200 W
Frequency Range 35 Hz - 250 Hz (-10 dB)
Dimensions
(H x W x D) 496 mm x 420 mm x 597 mm (19.5 in x 16.5 in x 23.5 in)
Frequency Response 40 Hz - 250 Hz (+/-3db)
System Maximum SPL 126 dB SPL
System Sensitivity (1w @ 1m 91 dB SPL
LF Driver 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer
Nominal Impedance 4 Ohms
Active Tunings Tunings available at www.jblpro.com
Enclosure 15 mm - 18 mm, multi ply birch plywood
Suspension / Mounting Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
Finish Black DuraFlex™ finish
Grille Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.

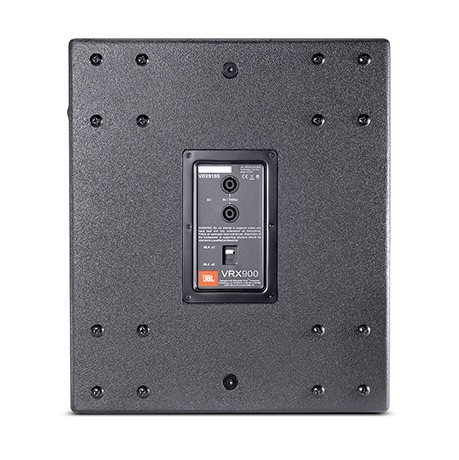

Input Connectors Switchable, +1/-1 or +2/-2
Net Weight 26.3 kg (58 lb)
