Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance
SonicGuard protection for high frequency driver preserves against excess power without interrupting performance

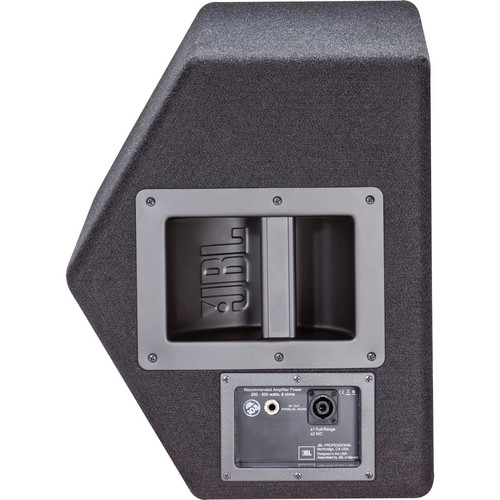

Non-resonant, all-steel handles
18-gauge perforated, steel grille for protecting internal components from damage
Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage
