Short description
The VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures.
JBL

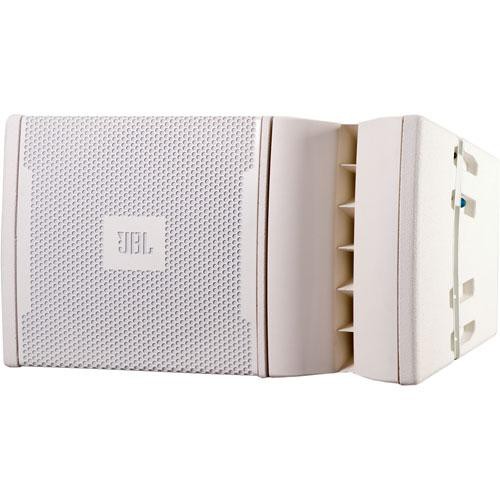

12" 2-Way Bi-Ampable Line Array System P.A. Speaker, White

Brand: JBL
Model: VRX932LA-1WH
UPC: 691991003776
Please log in to see your price
About This Product

Description:

The VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures. Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means of the Array Configuration Selector (ACS), a feature that provides amplitude shading when the system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array frame provide for a variety of mounting and suspension options. VRX932LA and VRX932LA-1 are completely interchangeable and can be used together. When operated in passive mode, frequency response characteristics are exactly the same and both can be used in the same array.

Power Rating 800 W / 1600 W / 3200 W

Frequency Range 57 Hz - 20 kHz (-10 dB)

Frequency Response 75 Hz - 20 Hz (+/-3db)

Coverage Pattern 100° x 15° nominal

Crossover ModesBi-amp / passive, externally switchable

Crossover Frequency1.2 kHz

System Maximum SPLPassive - 130 dB SPL peak, Bi-amp LF - 130 dB SPL peak

System Sensitivity (1w @ 1m) Passive - 95 dB SPL; Bi-amp LF - 95 dB SPL ; Bi-amp HF - 114 dB SPL

LF Driver1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.

HF Driver3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver

Nominal Impedance8 ohms

Active TuningsTunings available at www.jblpro.com

Input ConnectorsNeutrik® Speakon® NL-4 (x2)

Optional AccessoriesVRX932LA-AF - Suspension array frame; SS2-BK - Tripod speaker stand ; SS3-BK - Satellite speaker pole

Height 13.5 in (343 mm)

Width 23.5 in (597 mm)

Depth 14.8 in (376 mm)

Net Weight 46 lb (21 kg)

Specifications
